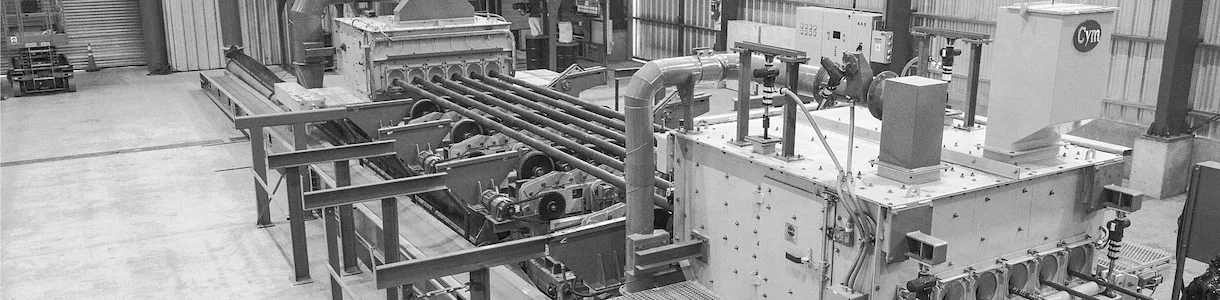

Internal pipe blasting by compressed air
Line TUB-INT
Compressed air lances for any pipe diameter
CYM Materiales offers machines and accessories for internal pipe blasting by compressed air, covering from Ø3/4" to large diameters where centrifugal blast wheels are not applicable or not the most efficient solution. The machines use blast lances or heads inserted into the pipe interior, projecting abrasive by compressed air pressure with 360° coverage of the inner surface.
The TUB-I-AC line is designed for internal pipe blasting with manual or automatic blast head movement and pipe rotation, processing one or multiple pipes simultaneously. For blasting without pipe rotation, the CY-Tornado head projects abrasive in 360° by centrifugal action, eliminating the need to rotate the part.
For the automatic internal and external blasting of threads and couplings used in the oil industry, CYM Materiales offers special compressed air machines for surface preparation and shot peening. These machines simultaneously process the internal thread and the outer surface of the coupling, ensuring a uniform and controlled finish.
La línea TUB-I-AC está diseñada para el granallado interno de tubos con sistema de movimiento del cabezal manual o automático y rotación de tubos, procesando uno o múltiples tubos en simultáneo. Para el granallado sin rotación del tubo, el cabezal CY-Tornado proyecta el abrasivo en 360° mediante cabeza giratoria por acción centrífuga, eliminando la necesidad de girar la pieza.
Para el granallado interno y externo automático de roscas y cuplas de la industria del petróleo, CYM Materiales dispone de equipos especiales para preparación de superficie y shot peening. Estos equipos procesan simultáneamente la rosca interna y la superficie exterior de la cupla, garantizando un acabado uniforme y controlado.
APPLICATIONS
Uses and blasting processes
CYM Materiales compressed air internal pipe blasting machines cover the complete diameter range for internal pipe cleaning, from small tubing to large diameters, complementing blast wheel solutions for each specific application.

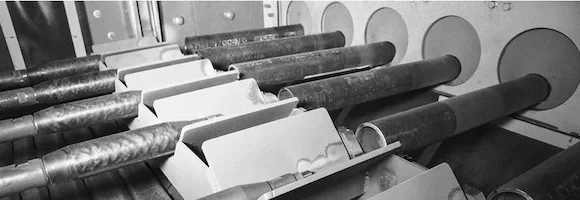

TUB-I-AC — INTERNAL BLASTING BY COMPRESSED AIR
- Internal blasting from Ø3/4" with compressed air lances or blast heads

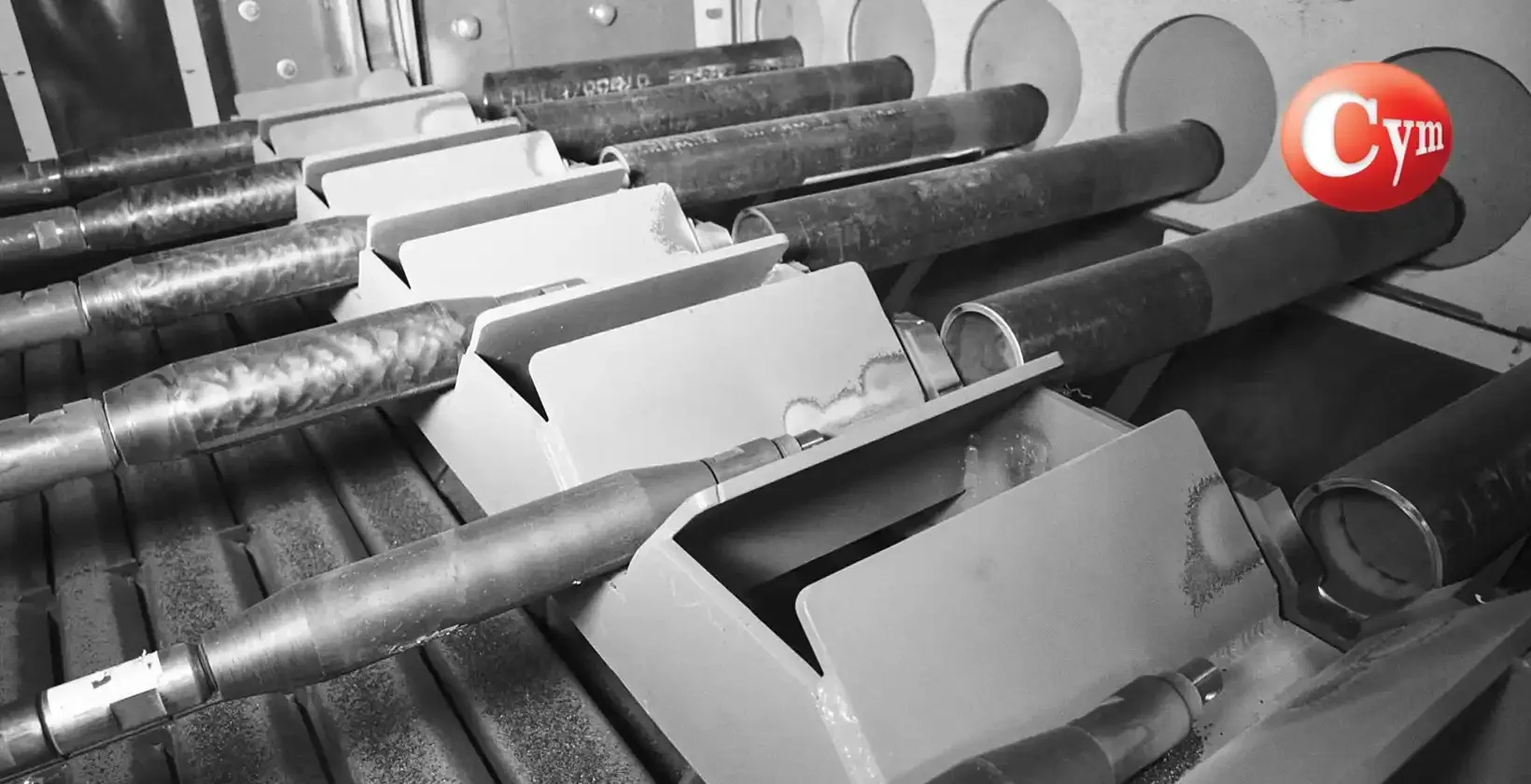

- Single or multiple simultaneous lances depending on diameter and required production
- CY-Tornado head for 360° blasting without pipe rotation
- Manual or automatic blast head movement system
- Suitable for small and medium diameters where blast wheels are not applicable

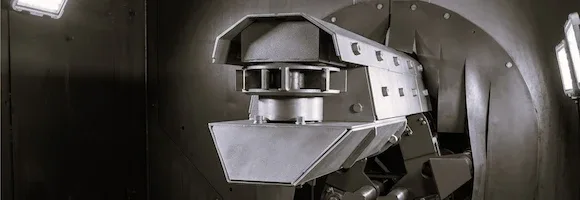

TUB-I-TR — INTERNAL BLASTING BY BLAST WHEEL
- Internal blasting from Ø20" with high-power centrifugal blast wheels
- Production of 2 to 7 m²/minute per blast head
- Transverse movement and simultaneous pipe rotation system
- Ideal for large-diameter gas and oil pipelines
- See full line at Pipe Shot Blasting by Blast Wheel

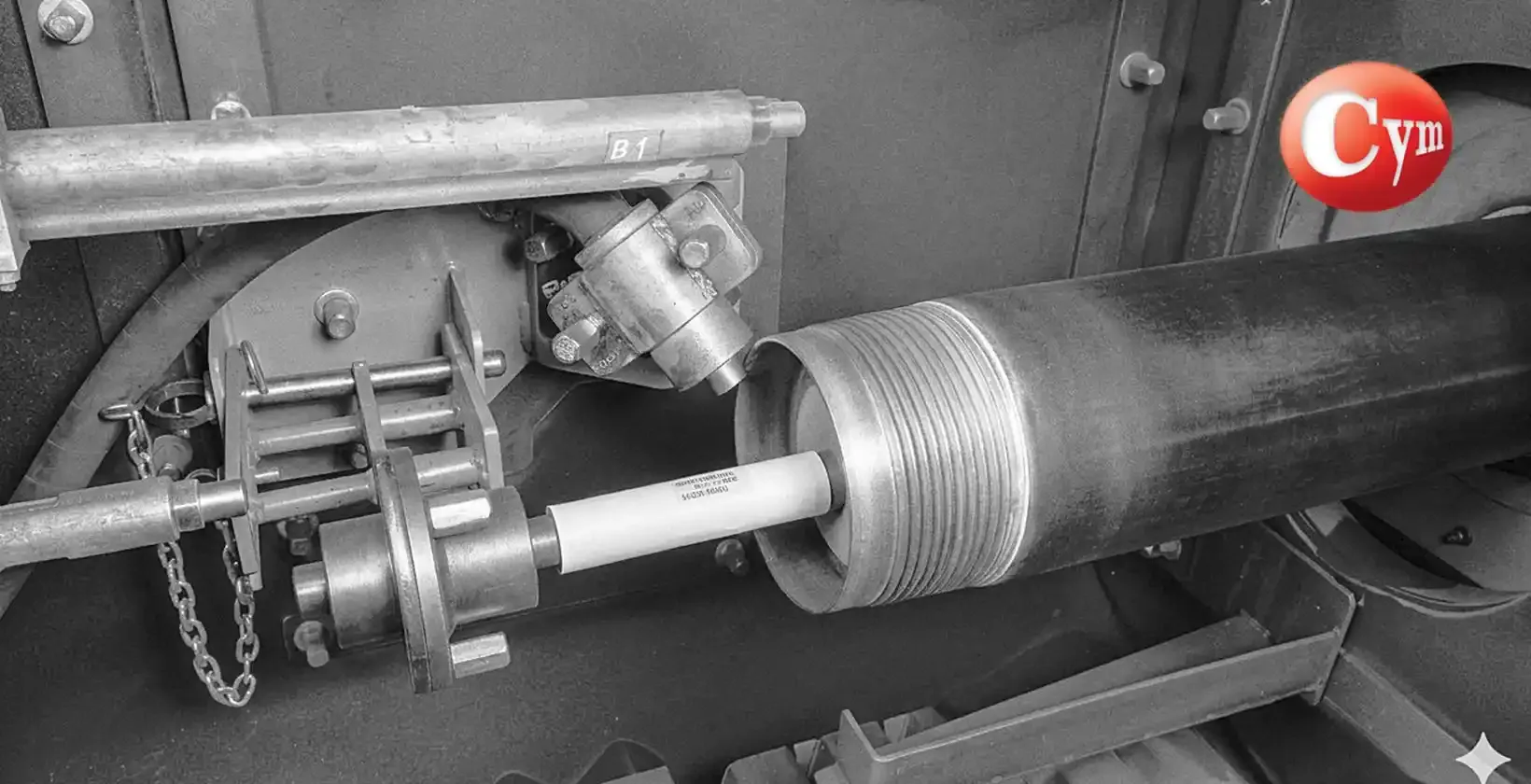

THREADS AND COUPLINGS — SPECIAL BLASTING
- Automatic internal and external blasting of threads and couplings for the oil industry
- Surface preparation prior to anticorrosive coating
- Thread shot peening for improved mechanical properties and fatigue resistance
- Simultaneous processing of internal thread and outer coupling surface
- Specific accessories for each type of thread and coupling
ACCESSORIES — BLAST HEADS AND EQUIPMENT
- CY-Conblast 1/4" heads for Ø3/4" to 2" and CY-Conblast 1/2" for Ø2" to 12"
- CY-Tornado head for Ø8" to 60" without pipe rotation
- Remote-control hoses in 10 m and 20 m lengths
- Side-exit nozzles with tungsten carbide core
- Gri-Puller pusher for automatic abrasive hose drive
LINE SELECTION BY PROCESS TYPE
What do you need to blast? Find your machine
Select the process type to see the recommended equipment line.
| PROCESS TYPE | TUB | PER / EST | TUB-I-TR | TUB-I-AC | THREADS |
|---|---|---|---|---|---|
| External — straight pipes, fixed diameter | ✔ | ||||
| External — straight pipes, variable diameters | ✔✔ | ||||
| External — spools, bent pipes and fittings | ✔✔ | ||||
| External — profiles and welded structures | ✔✔ | ||||
| Internal — from Ø20" by blast wheel | ✔ | ||||
| Internal — from Ø3/4" by compressed air | ✔ | ||||
| Internal — without pipe rotation | ✔ | ||||
| Threads and couplings — surface preparation | ✔ | ||||
| Threads and couplings — shot peening | ✔ |
Equipment line
Select the equipment for your application
CY-1210P-SP-threads line
Pipe thread shot peening
Shot peening and cleaning of internal and external API pipe threads. Cyclonic cabinet, oscillating nozzle, motor rollers and PLC control.
Leer mas
Line TUB-I-AC
Internal pipe blasting
Internal pipe blasting machines using compressed air for pipes from Ø3/4". Single or multiple simultaneous lances with manual or automatic head movement and pipe rotation. Covers diameters where centrifugal blast wheels are not applicable.
Leer mas
Accessories — CY-Conblast y CY-Tornado
Internal Pipe Blasting Accessories
Complete line of blast heads and accessories for internal pipe blasting by compressed air, covering from Ø3/4 to Ø60 with different devices depending on diameter and process type.
Leer mas
TUB, PER & TUB-I LINE
Tube shot blasting
Pipe shot blasting by centrifugal blast wheel, for both external and internal treatment in high-productivity continuous process
Leer mas
PER, EST & CH LINES
Shot blast machine for profiles and welded structures
Automatic shot blasting machines for profiles, tubes, spools and welded structures.
Leer mas
Blast room
For manual operation or automatic robot/nozzle manipulator blasting.
Leer masInstallations
Equipment in operation
Videos
Equipment in action
Special Projects
Can't find the equipment you need?
CYM Materiales develops it.
Our Engineering and Sales team works alongside the client to design a custom solution, reducing operating costs and maximizing productivity. Every project starts with a detailed technical assessment and ends with a machine built and tested at our plant
REQUEST A CUSTOM PROJECT
