Continuous belt shot blast machine rubber and mesh
cyn & mesh lines
Continuous belt — texture and cleaning in automatic passage
CYM Materiales manufactures continuous belt shot blasting machines for the surface treatment of flat parts requiring automatic continuous-pass processing. Simple to operate and highly productive, they are used in a wide variety of industrial applications: natural stone tiles and slabs, brake pads, aluminium die-cast parts, and other components requiring controlled surface texture or surface preparation for coatings.

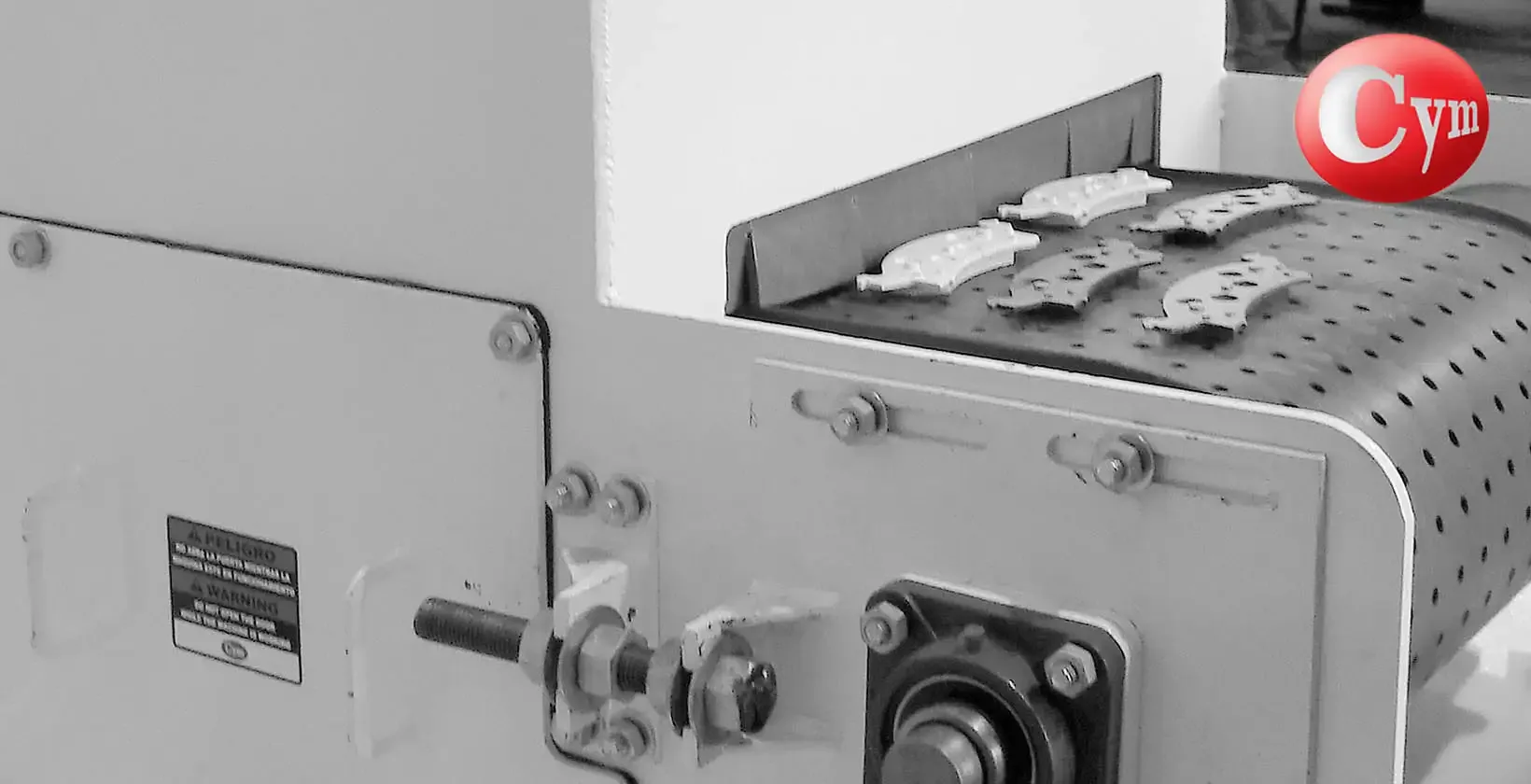

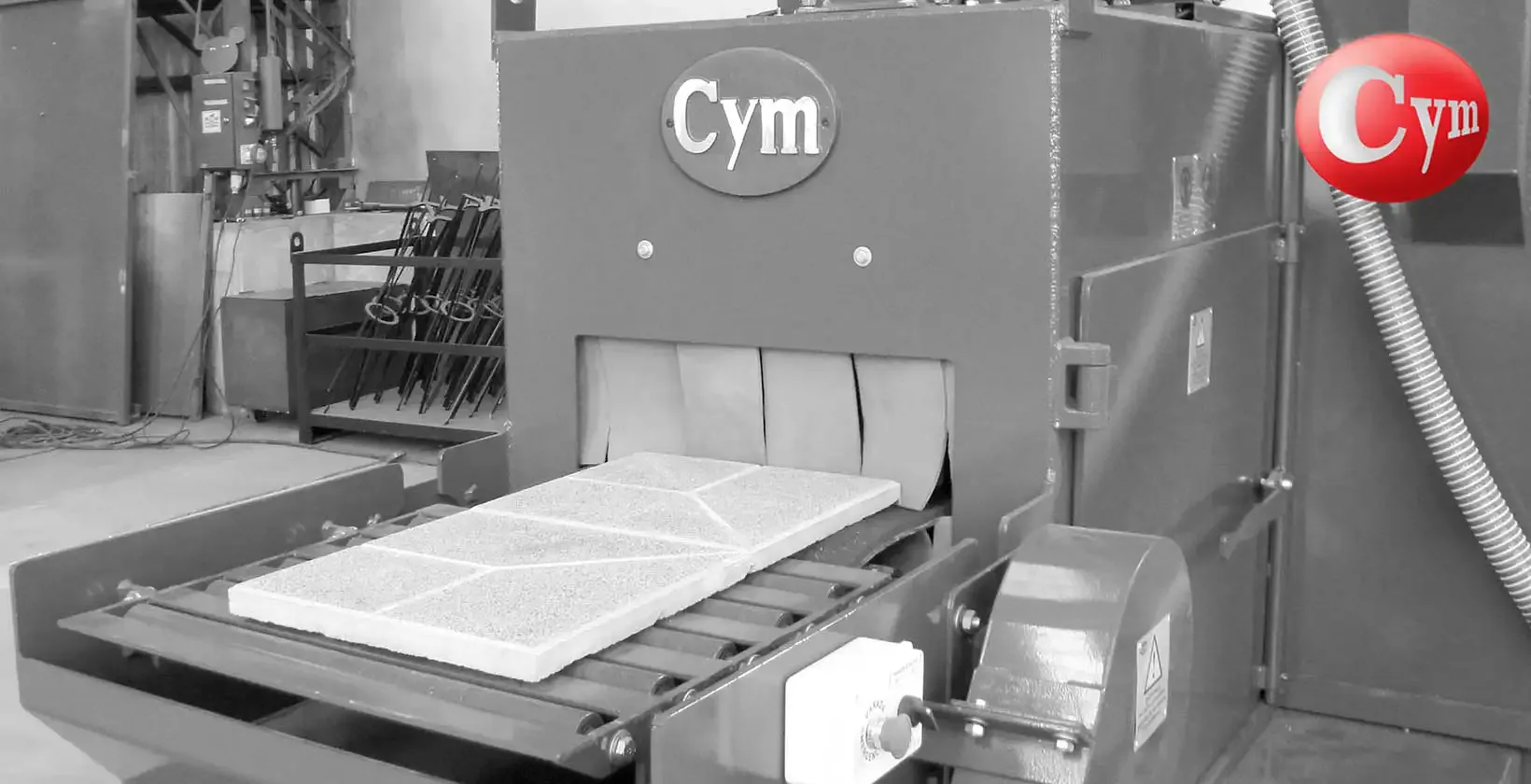

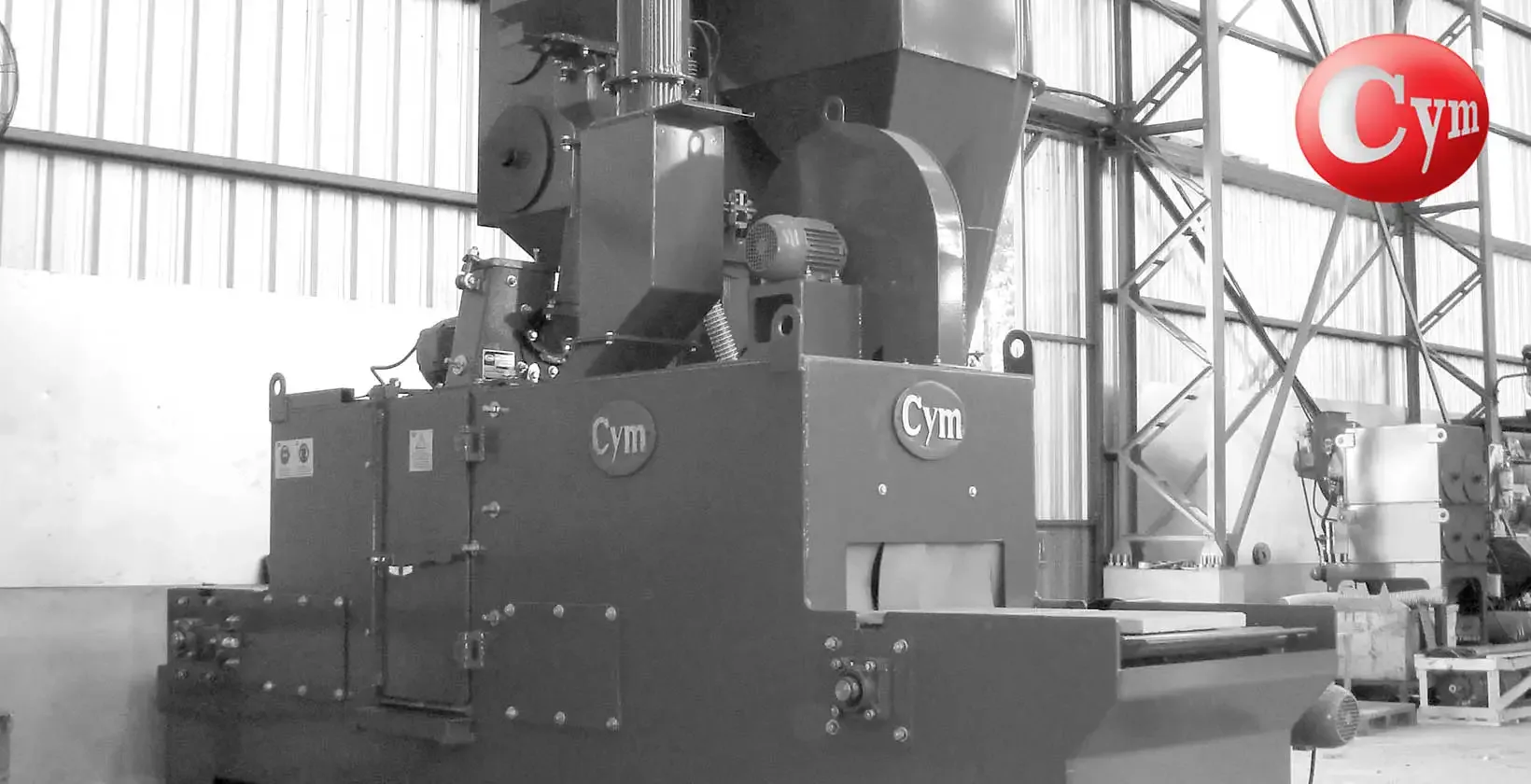

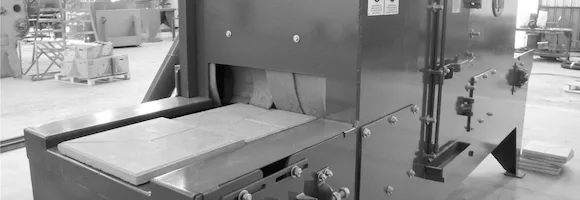

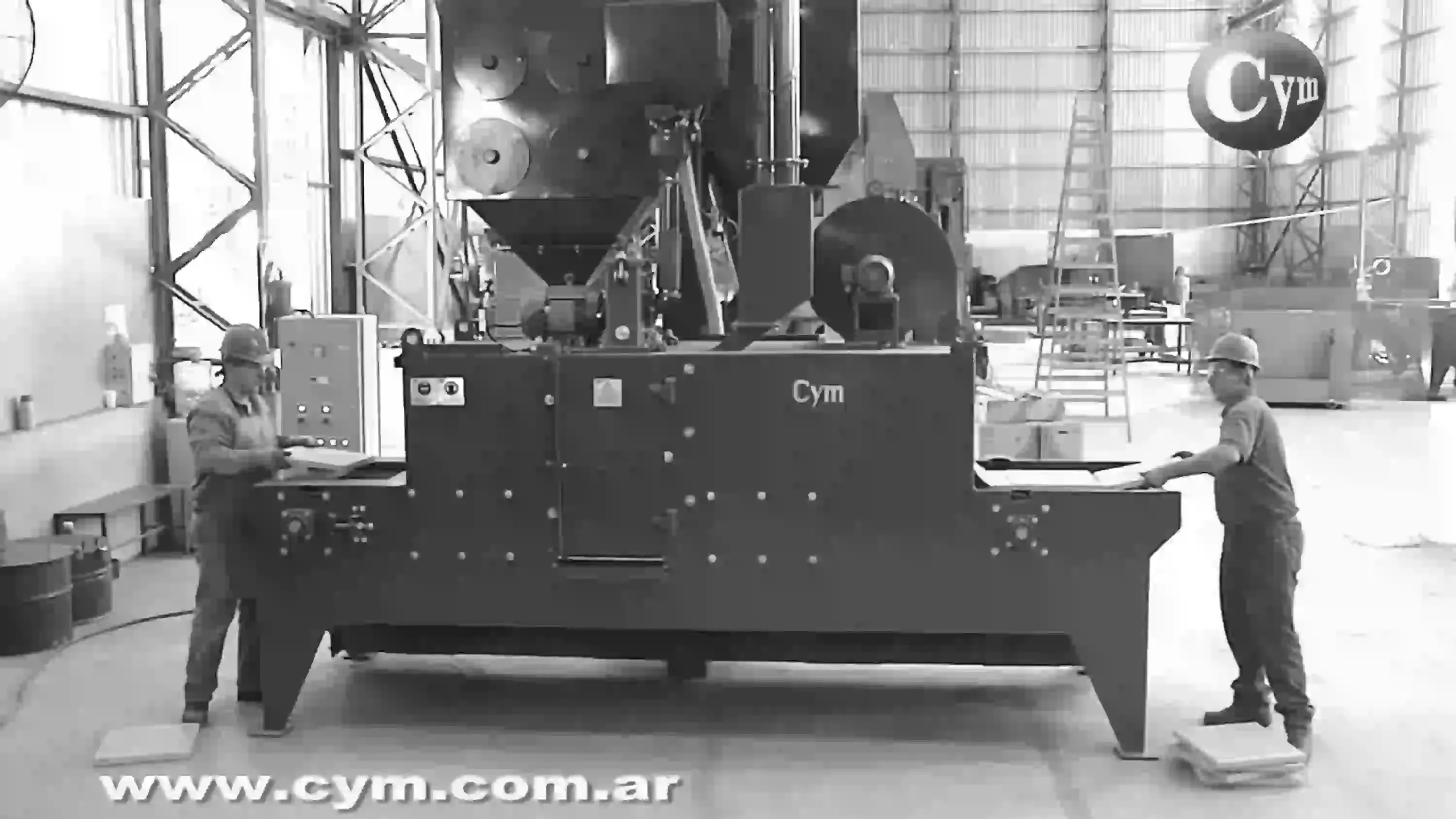

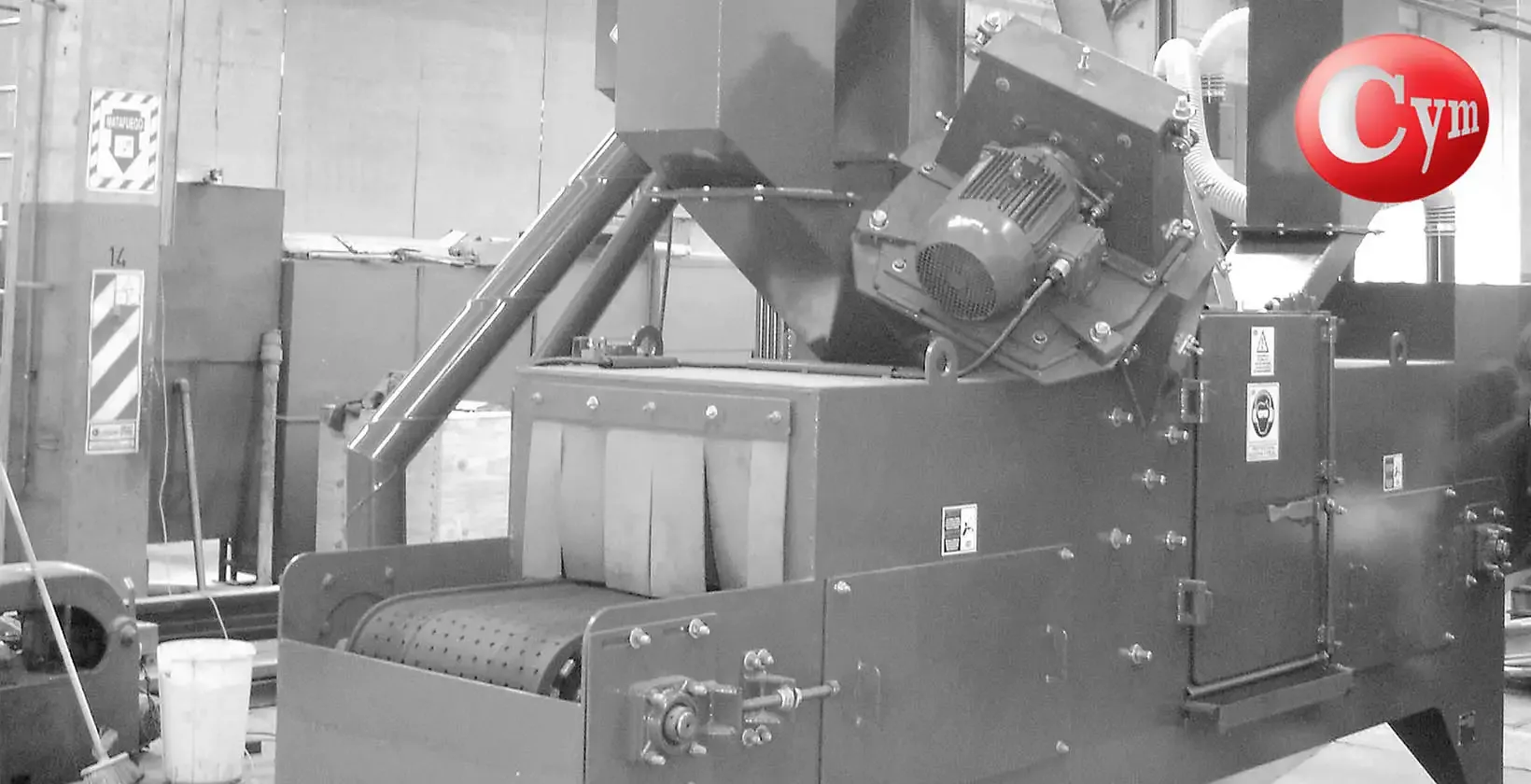

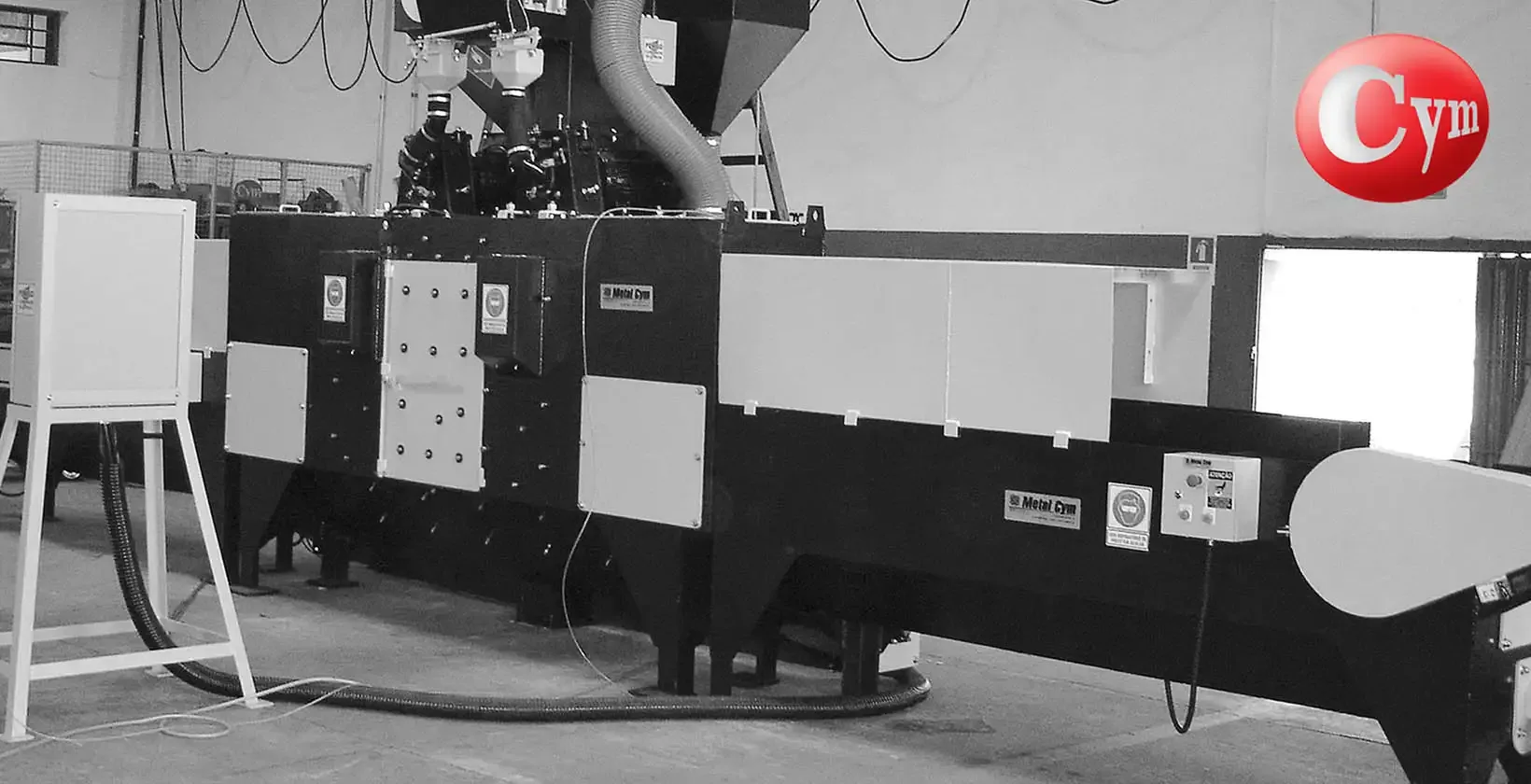

The CIN rubber belt line incorporates 1 or 2 upper blast wheels that blast one face at a time. Ideal for generating anti-slip texture or aged finish on marble, granite and concrete, and for selective one-face blasting of brake pads and similar components.

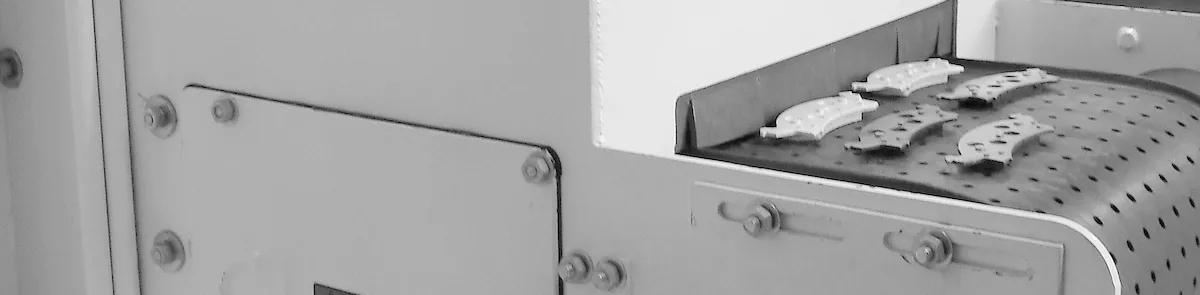

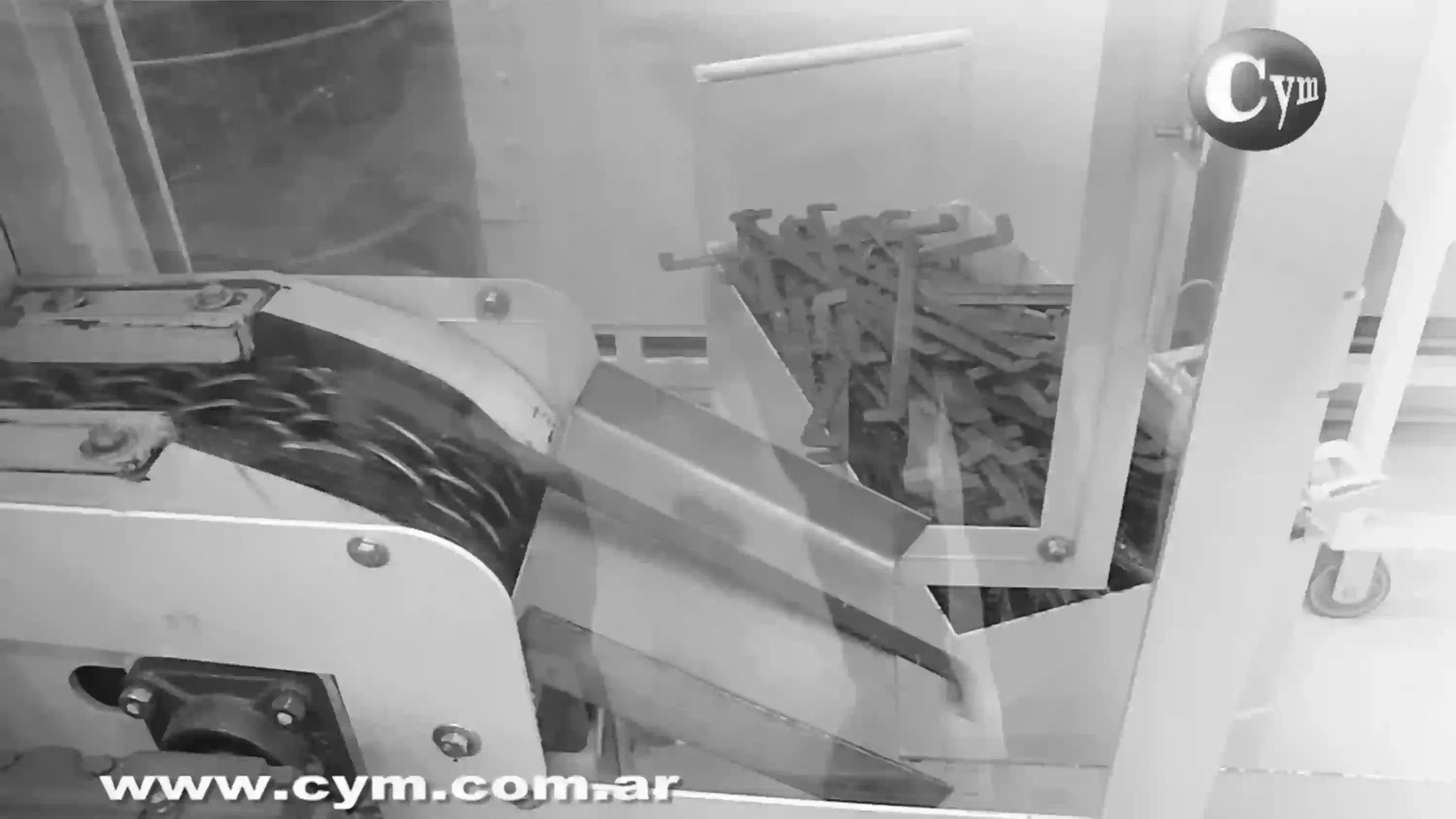

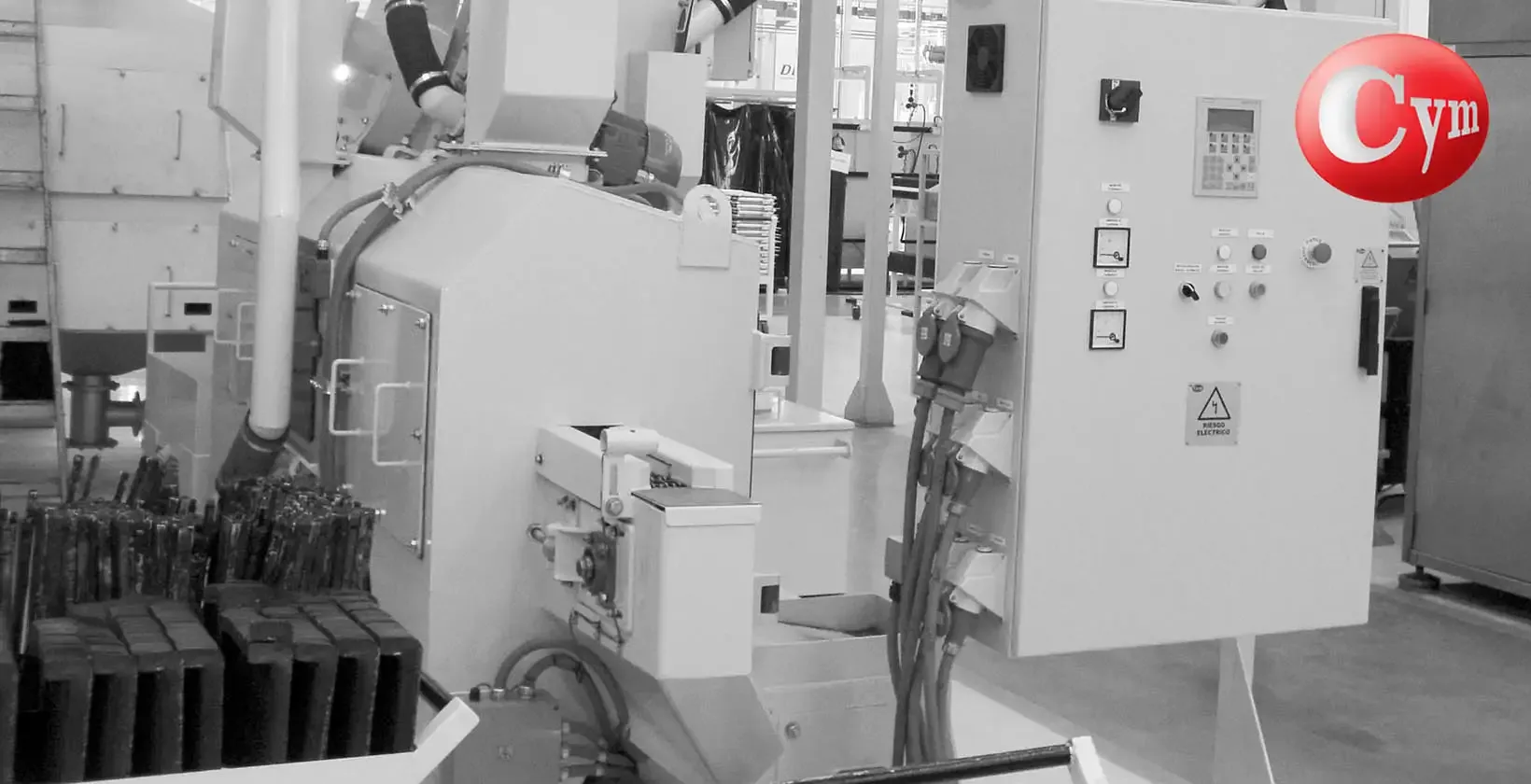

The MESH manganese steel mesh belt line incorporates upper and lower blast wheels that blast both faces simultaneously in a single pass. Available in configurations of 4 or 8 blast wheels depending on production volume and required cleanliness level. Especially suited for aluminium, zamac and light alloy die-cast parts requiring complete cleaning in high-volume continuous production.
Applications
Uses and shot blasting processes
CYM continuous belt machines are configured according to the part type and required process. The choice between rubber belt and steel mesh belt defines the blasting mode — one face or both faces simultaneously — and determines the industries and applications each line is best suited for.
CIN — RUBBER BELT
- One-face-at-a-time blasting with controlled surface texture
- Anti-slip or aged finish on marble, granite and concrete
- Selective blasting of the metal backing of brake pads
- Surface preparation on tiles and slabs for coating application
- Processing of delicate flat parts that cannot tumble
- Belt speed and abrasive flow adjustable via variable frequency drive
- Integrable in continuous production lines

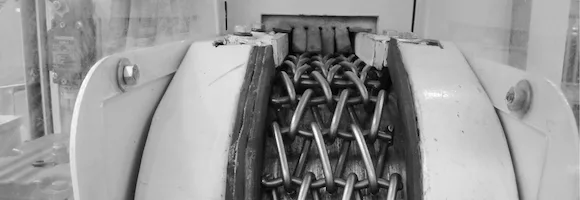

MESH — MANGANESE STEEL MESH BELT
- Simultaneous blasting of both faces in a single pass
- Complete cleaning of aluminium, zamac and light alloy die-cast parts
- Blasting of both backing and friction face of brake pads in a single cycle
- Surface preparation for painting, rubber and industrial coatings
- Available in configurations of 4 or 8 blast wheels depending on production volume
- Abrasive projected from lower blast wheels passes through the mesh reaching the underside
- High productivity in automatic continuous process without part handling
EQUIPMENT SELECTION
What do you need to blast? Find your machine
Select the process type to see the recommended equipment line.
| MODEL | TURBINES | MAXIMUM PART PASSAGE SECTION (*) | VELOCITY | ||
|---|---|---|---|---|---|
| Qty | HP | WIDHT | HEIGHT | M/MM (**) | |
| CIN 500-1TR | 1 | 10 | 20" 500 mm | 8" 200 mm | 0.3 A 0.7 M/MIN |
| CIN 500-2TR | 2 | 10 | 20" 500 mm | 16" 400 mm | 0.3 A 0.7 M/MIN |
| MESH 500-4TR | 4 | 10 | 20" 500 mm | 16" 400 mm | 0.6 A 1.2 M/MIN |
| MESH 800-8TR | 8 | 10 | 32" 800 mm | 16" 400 mm | 1.0 A 2.0 M/MIN |
Installations
Equipment in operation
Videos
Equipment in action
Special Projects
Can't find the equipment you need?
CYM Materiales develops it.
Our Engineering and Sales team works alongside the client to design a custom solution, reducing operating costs and maximizing productivity. Every project starts with a detailed technical assessment and ends with a machine built and tested at our plant
REQUEST A CUSTOM PROJECT
