Rotary table and satellites
MAP & SAT LINEs
Rotary table and satellites — precision on every part
CYM Materiales offers a wide range of rotary table and rotary satellite shot blasting machines for the surface treatment of parts that cannot be processed in bulk-load equipment or continuous-pass machines. Each line is designed to match the part type, required process, and the customer's production volume.
The MAP line (Rotary Table) positions parts on a rotating table in front of the blast wheel, ensuring uniform coverage across the entire surface. Available in diameters of 600, 1000 and 1600 mm (24", 39" and 63"), it is ideal for medium and large parts requiring individual processing with minimal handling.
The SAT line (Rotary Satellites) incorporates a central indexing mechanism that precisely positions multiple satellites in front of the blast wheel stream or compressed air nozzles. Modular configuration from 2 to 18 satellites, with optional automatic loading and unloading robots for integration into fully automated manufacturing cells.
MAP and SAT-TR machines are used in two main application groups: cleaning and surface preparation of castings, industrial molds, water heaters, LPG cylinders, and aluminium and non-ferrous metal components, and shot peening with controlled Almen parameters on gears, ring gears, clutch discs and automotive and industrial transmission components.
Applications
Uses and shot blasting processes
CYM Materiales MAP and SAT machines are used in a wide variety of industrial processes for the treatment of parts requiring precise and controlled abrasive exposure. A single line can combine cleaning, surface preparation and shot peening processes depending on the machine configuration.
CLEANING AND SURFACE PREPARATION PROCESSES
- Cleaning of extrusion and glass/aluminum blow molds
- Cleaning of plastic and rubber injection molds
- Cleaning of water heaters, boilers and pressure vessels
- Desanding of ferrous and non-ferrous castings
- Descaling of forged or heat-treated parts
- Surface preparation for painting, metallizing or coating
- Aluminium part cleaning with stainless steel shot
- Processing of delicate parts that cannot tumble or knock against each other

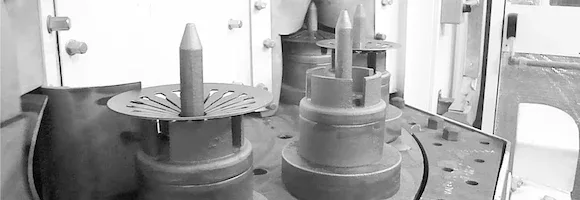

PROCESOS DE SHOT PEENING
- Shot peening of gears, pinions and ring gears
- Shot peening of clutch discs and brake discs
- Shot peening of automotive transmission components
- Shot peening of drill bits and boring tools
- Shot peening of aluminium wheels and rims
- Single and double shot peening with controlled Almen parameters
- Process always performed after heat treatment and grinding of components
- Robot integration for precise and repeatable positioning in serial production
EQUIPMENT SELECTION
What do you need to blast? Find your machine
Select the process type to see the recommended equipment line.
| SELECTION CRITERIA | MAP | SAT - TR | SAT - AC |
|---|---|---|---|
| Projection system | Centrifugal blast wheel | Centrifugal blast wheels | Compressed air |
| Part size | Medium and large | All sizes | All sizes |
| Productivity / volume | Medium | High | High |
| Downtime between cycles | Normal | Minimal | Minimal |
| Satellites / tables | 1 table | 2 TO 18 | 2 TO 18 |
| Cleaning processes | ✔ | ✔ | ✔ |
| Shot peening | - | ✔ | ✔ |
| Controlled Almen parameters | - | ✔ | ✔ |
| Selective / localized blasting | - | - | ✔ |
| Automatic loading robots | - | ✔ | ✔ |
| Automated cell integration | - | ✔ | ✔ |
Equipment lines
Select the equipment for your application

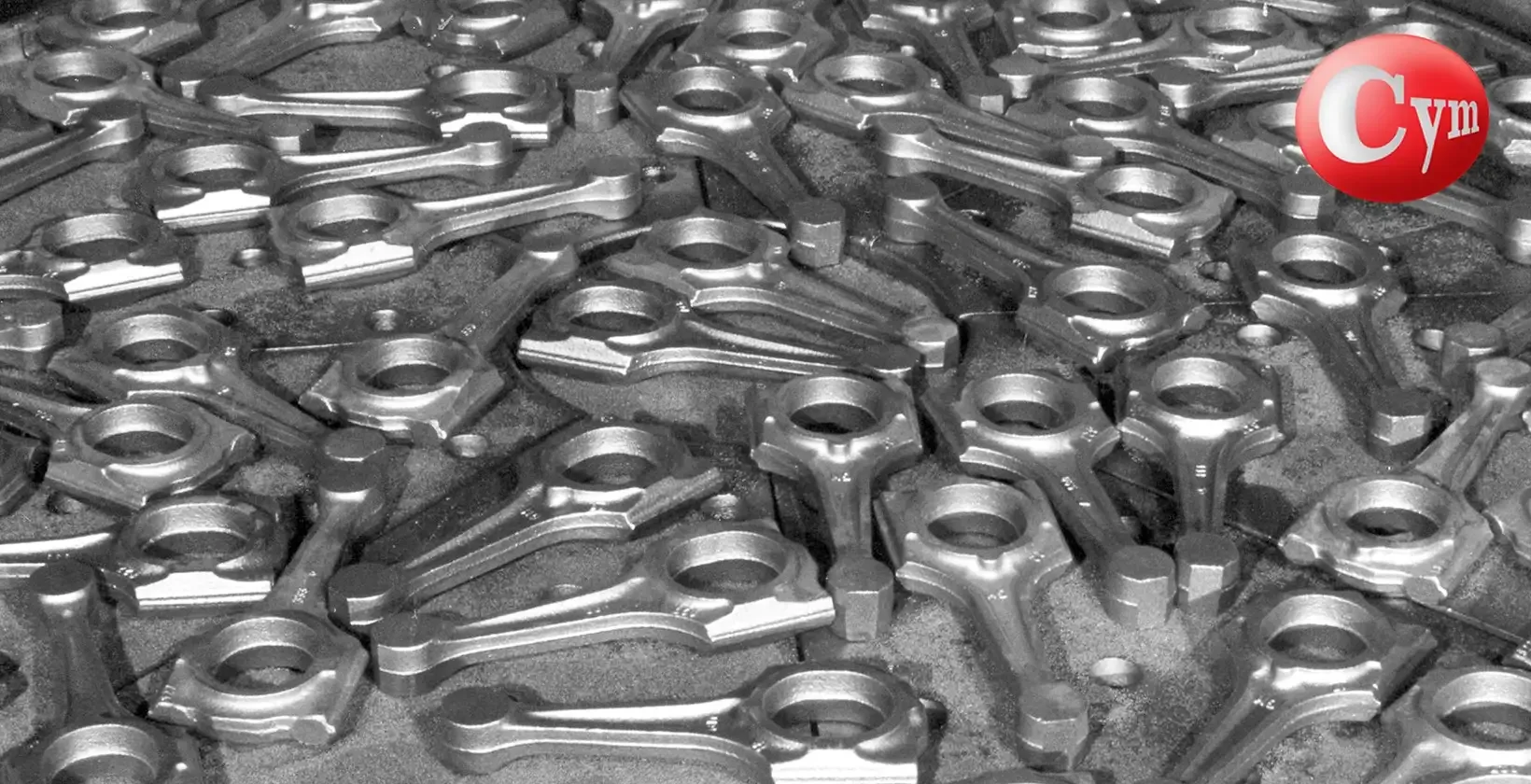

MAP line
Rotary table shot blast machine
For cleaning molds, castings, water heaters and large parts. Diameters 600 to 1600 mm (24" to 63")
Leer mas

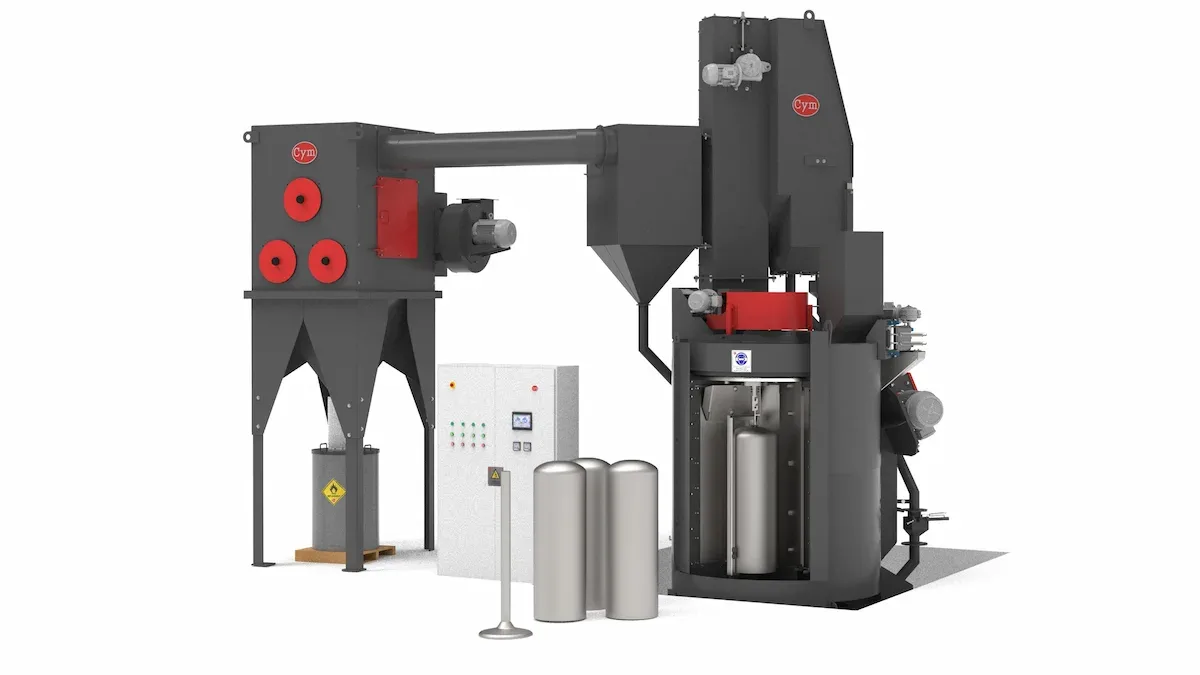

SAT-TR-Cleaning
Satellite blast cleaning machine
For cleaning aluminium, water heaters and LPG cylinders. 2 to 6 centrifugal satellites in serial production. CYM Materiales.
Leer mas

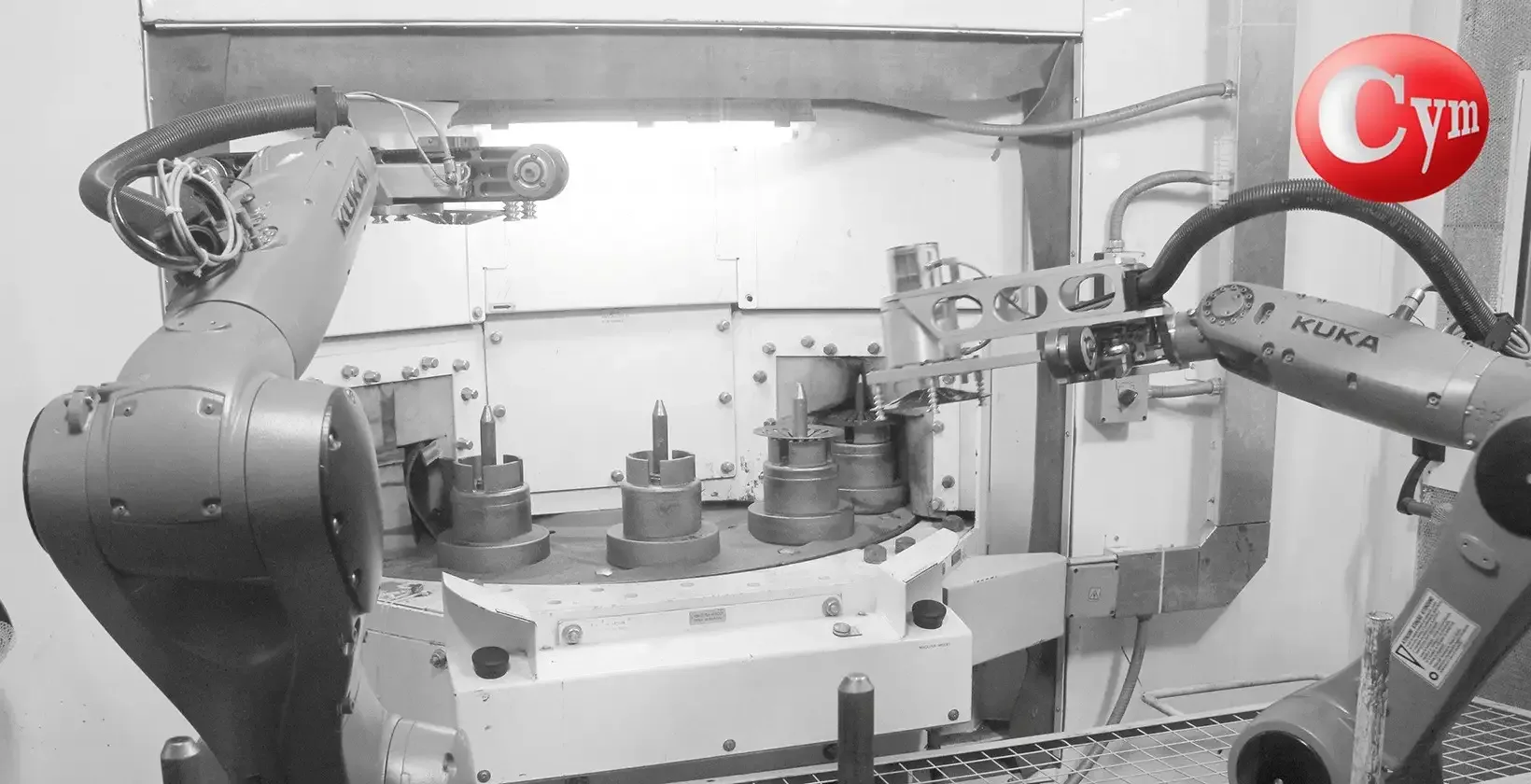

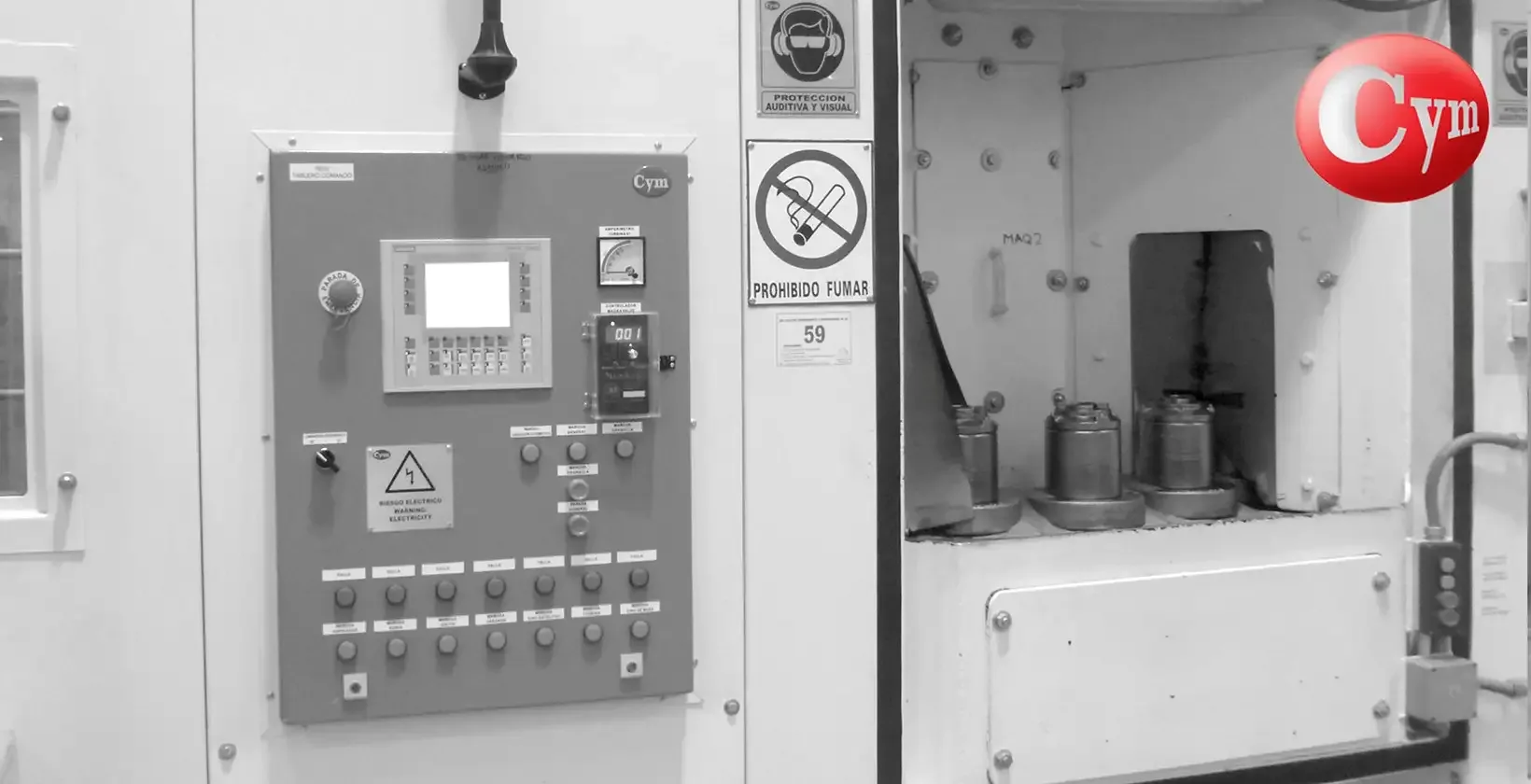

SAT-TR-SP LINE
Satellite shot peening machine
With centrifugal blast wheels. Controlled Almen parameters on gears, clutchs discs and transmission parts. 2 to 18 satellites.
Leer masInstallations
Equipment in operation
Special Projects
Can't find the equipment you need?
CYM Materiales develops it.
Our Engineering and Sales team works alongside the client to design a custom solution, reducing operating costs and maximizing productivity. Every project starts with a detailed technical assessment and ends with a machine built and tested at our plant
REQUEST A CUSTOM PROJECT
