Section bending machines for structural steel
APK line
Bending of angles, tubes, beams and structural profiles

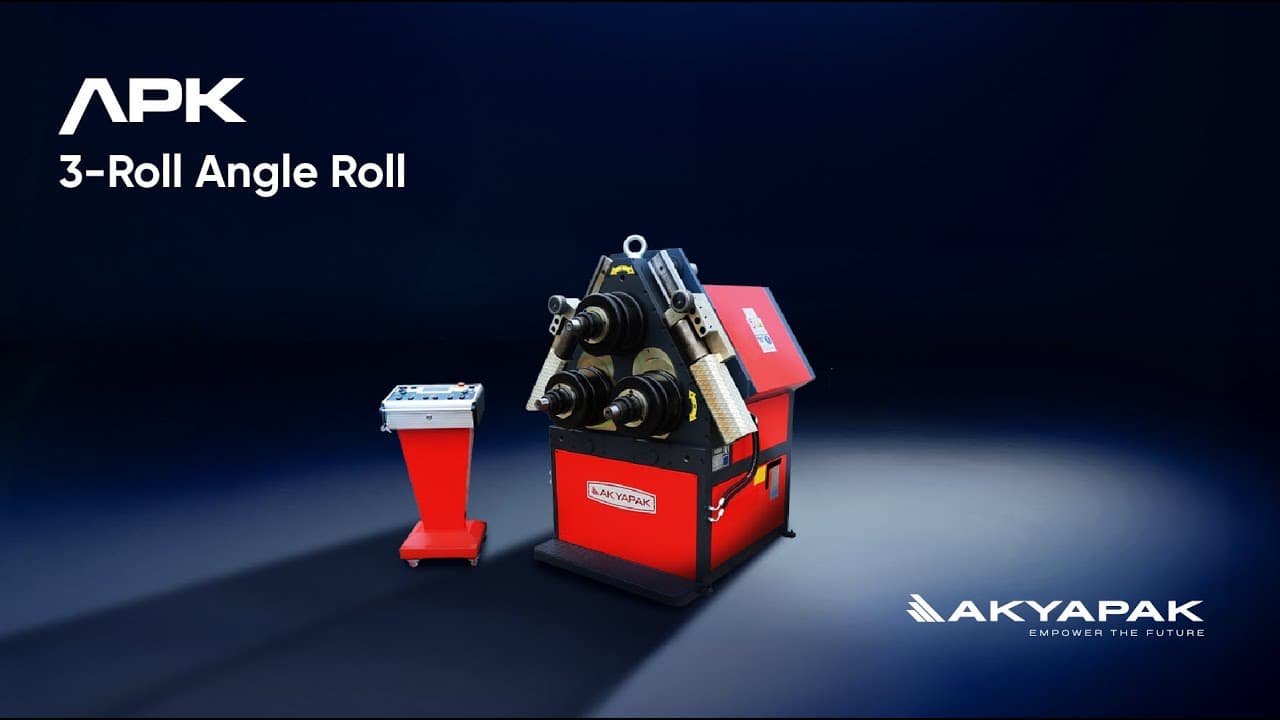

The section bending machines supplied by CYM Materiales bend angles, T-sections, flats, tubes, U-channels and H/I beams in structural steel. Manufactured by AKyapak (APK series), they feature a welded St-52 steel body, three hydraulic-motor-driven rolls, and side guide rolls adjustable in three directions to minimize section deformation during bending.

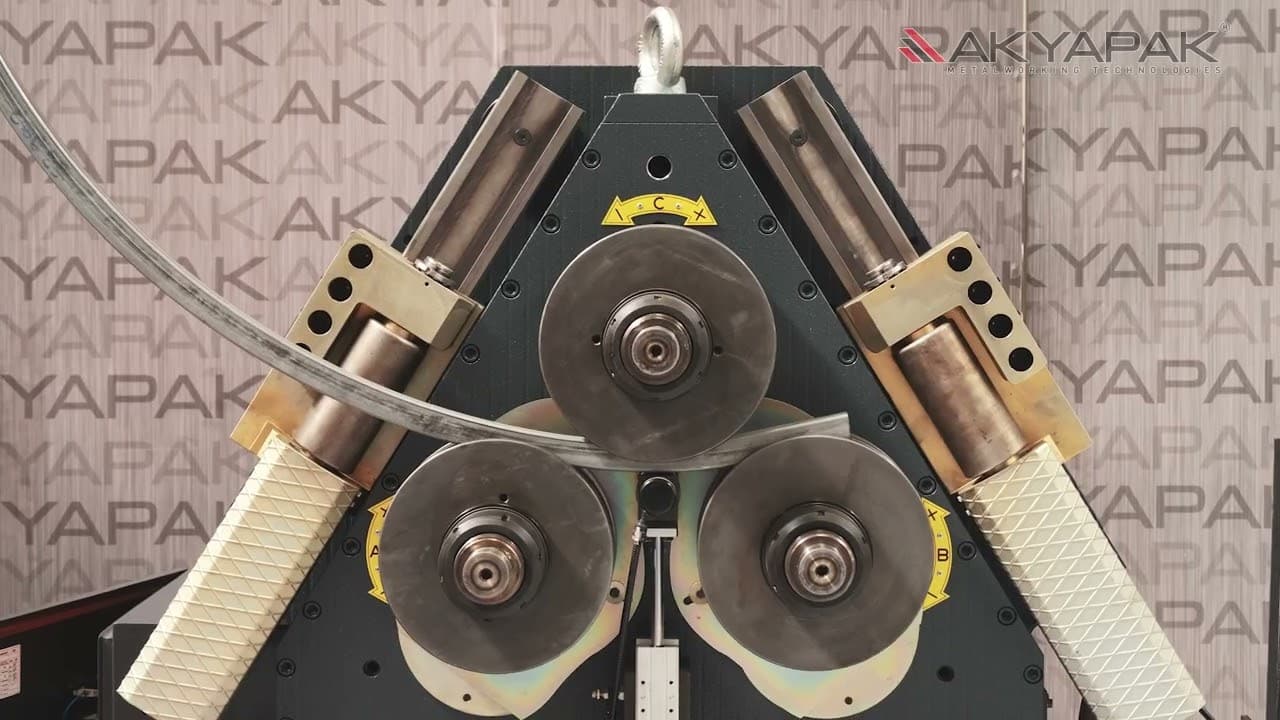

The two bottom rolls move hydraulically and independently, allowing pre-bending of both ends of the profile without removing it from the machine. The series ranges from compact 0.75 kW machines for mid-size shops to 160 kW lines capable of bending HEB 1000 beams the hard way and tubes up to Ø 610 mm (24") — one of the highest bending moments available in this category worldwide.
APPLICATIONS
Section bending processes and uses
APK section bending machines are used in the fabrication of steel structures, wind towers, bridges, shipyards, arches and all types of curved geometries in structural sections.
OPEN SECTIONS AND STRUCTURAL PROFILES
- Bending of open sections the easy way and hard way.
- Angles (L) easy way and hard way
- T-sections easy way, hard way and leg side
- U-channels easy way and hard way
- H/I beams (HEA, HEB, INP, IPE) easy way and hard way
- Flat bars bent on strong and weak axis
- Optional hydraulic pulling system for H, U and I sections hard way
TUBES, SQUARE SECTIONS AND SPIRALS
- Bending of closed sections and continuous shapes.
- Round, square and rectangular tubes
- Square and rectangular hollow sections (HSS)
- Spirals in specific diameters
- Rings and arc segments
- Bulb flat sections for shipbuilding — APK 240 NC model
- Special roll sets for each section, deformation-free bending
APK SERIE
What do you need to blast? Find your machine
Selection depends on section size, required bending moment and production volume. Optional NC AK300 or CNC AK400 control available across all ranges.
| Models | RANGE | Power | Max. moment | Best for |
|---|---|---|---|---|
| APK 30 to APK 81 | Compact | 0,75 – 5 kW | up to 210 cm³ | Mid-size shops, light profiles and tubes, small angles |
| APK 101 to APK 360 | Industrial | 11 – 70 kW | up to 4.700 cm³ | Structural fabrication, medium HEA/HEB beams, channels and large tubes |
| APK 550 to APK 1000 | Heavy | 99 – 160 kW | up to 11.000 cm³ | Heavy industry, HEB 1000 beams, wind towers, shipyards, tubes to Ø 610 mm (24") |
Optional NC AK300 or CNC AK400 control available across all ranges.
