170-litre blast pot

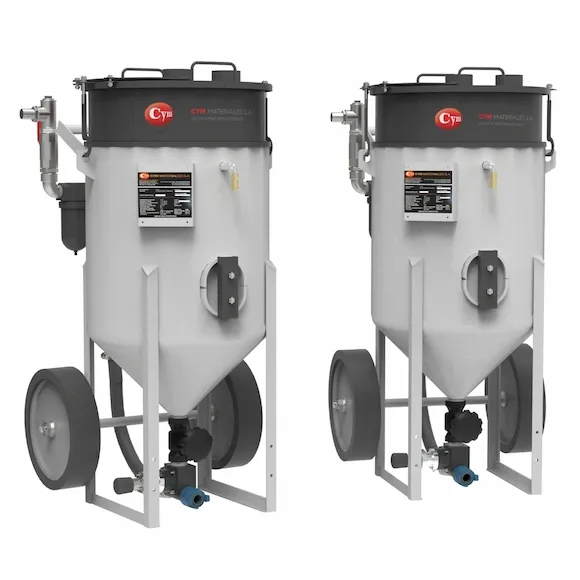

The CYM CY-150 blast pot is the mid-range model of the CY line: 170-litre capacity, 700 kg of shot loading and a portable wheeled frame. Measuring Ø600 × 1200 mm (Ø23⅝" × 47¼") and weighing 180 kg empty, the CY-150 is the standard tool for blast rooms, naval installations, field work and medium-to-high production operations.
The CY-150 is supplied with an integrated air filter-regulator assembly and in four control variants — manual (M), with depressurization (D), dual (DD) and Pinch (P). It accepts No.3 to No.6 Venturi nozzles (Ø5 to Ø10 mm) for metallic or mineral abrasives at up to 7 kg/cm² (100 PSI), with operating autonomy of up to 72 minutes per charge with a No.3 nozzle. The modular design allows control system upgrades without replacing the base unit.

• Capacity: 170 litres — 700 kg shot loading
• Integrated air filter-regulator assembly (standard)
• 1 nozzle outlet — No.3 to No.6 Venturi nozzles (Ø5 to Ø10 mm)
• Maximum working pressure: 7 kg/cm² (100 PSI)
• Autonomy: 72 min (No.3) · 54 min (No.4) · 36 min (No.5) · 24 min (No.6)
• Portable wheeled frame (transport in empty condition)
• Four control systems available: M · D · DD · P
• Modular design — upgradeable via conversion kits without replacing the base unit
• ASME construction — automatic pop-up fill valve and pressure safety valve
