Wire coil shot blast machine

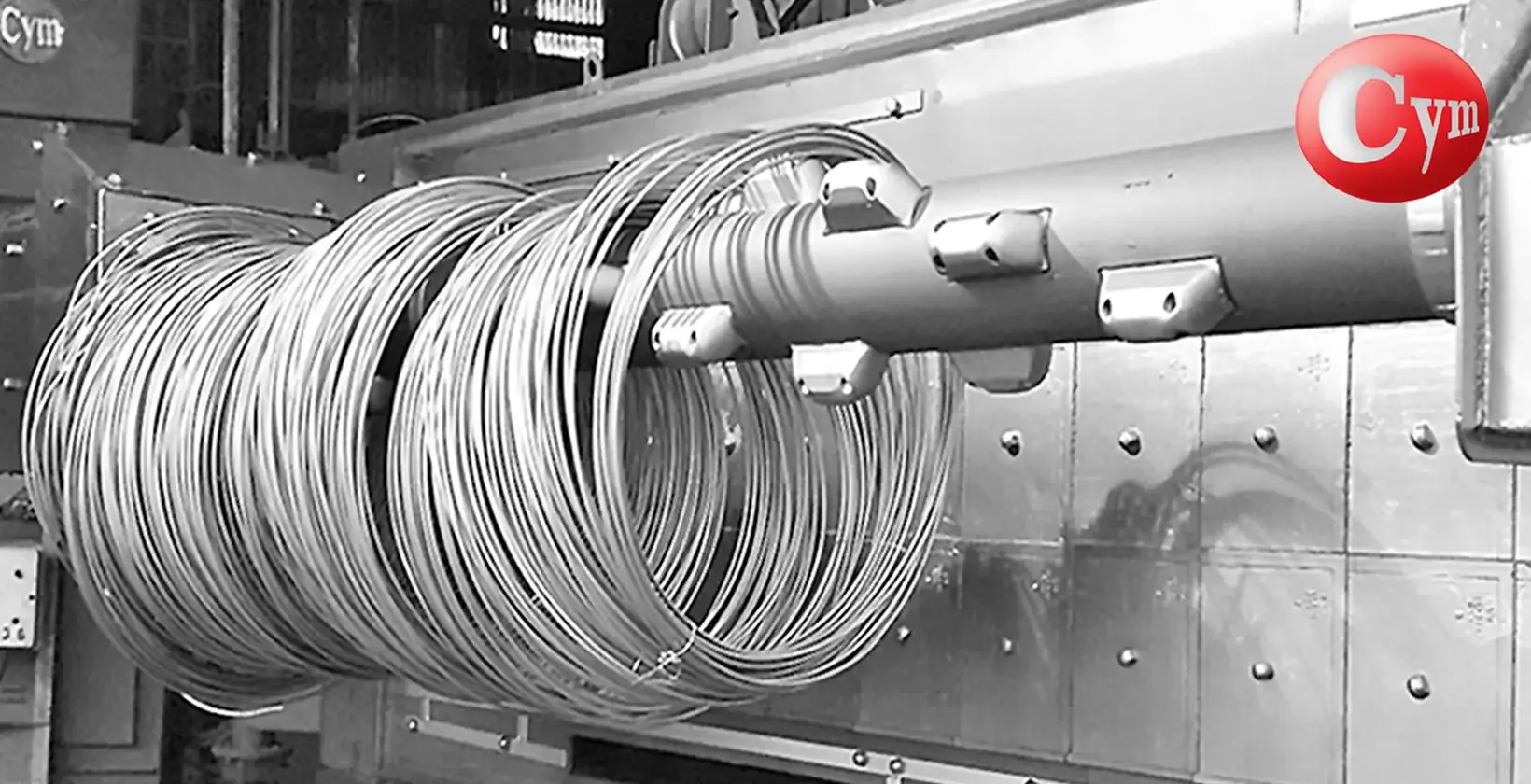

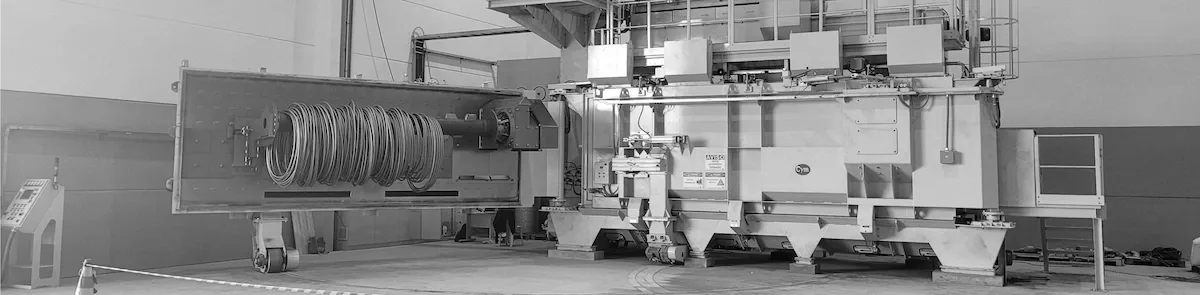

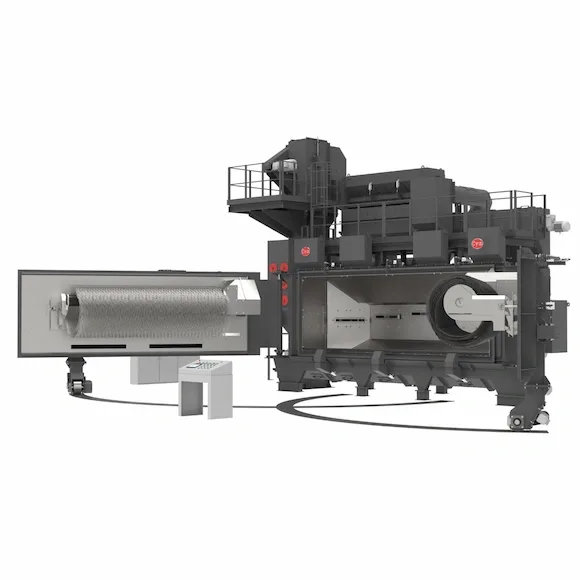

CYM Materiales batch shot blast machine for the mechanical descaling of wire coils (wire rod). The coil is mounted on a rotating mandrel inside the blast chamber where centrifugal blast wheels project abrasive ensuring complete coverage. The COIL4 and COIL5 models process coils of up to 3000 kg in cycles of 7 to 20 minutes depending on steel type and wire diameter. Available with one or two loading doors — the double-door configuration minimizes downtime by allowing loading of one coil while the previous one is being blasted.

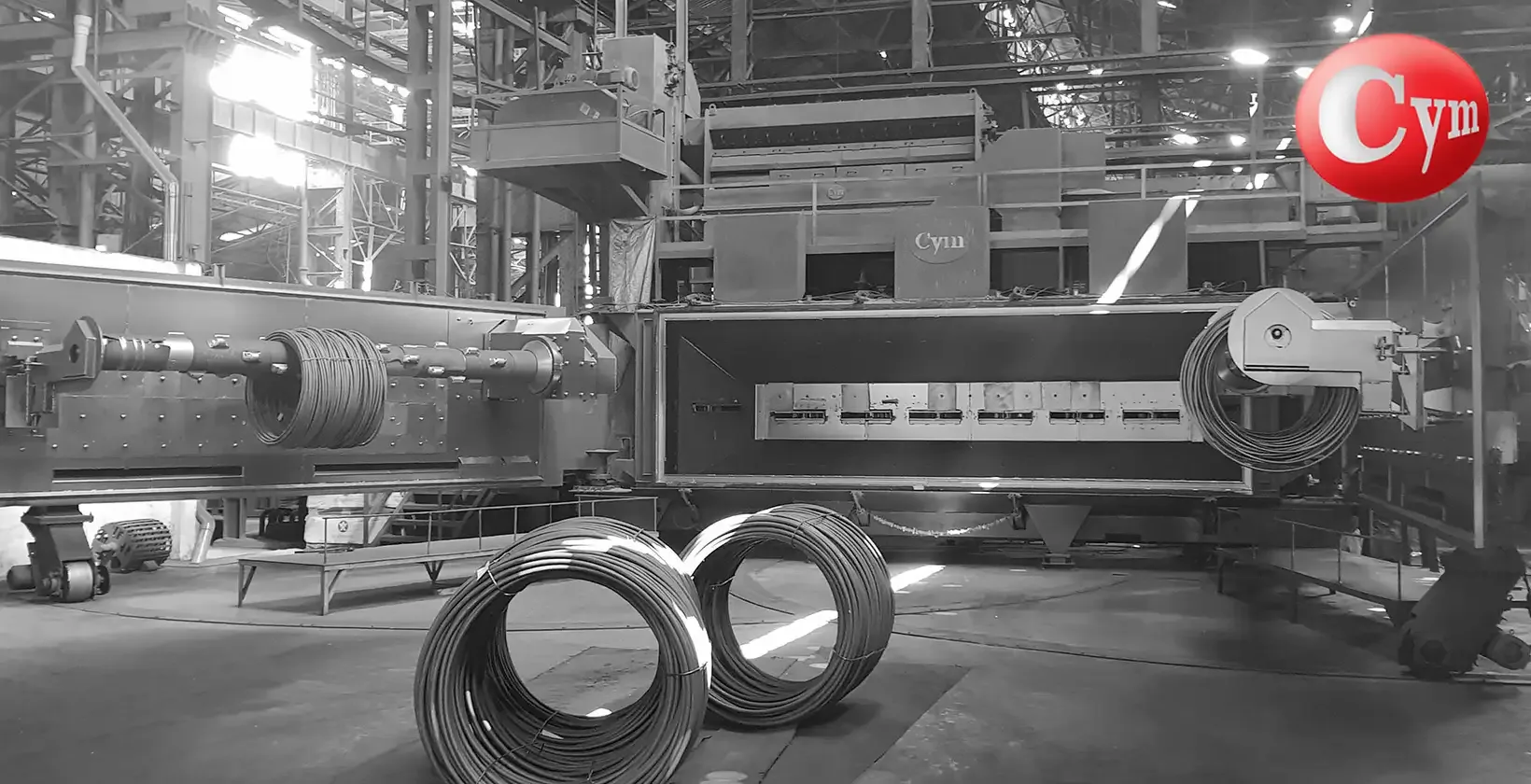

• COIL4 (4 m mandrel, 6 blast wheels, 347 HP) and COIL5 (5.2 m mandrel, 8 blast wheels, 464 HP) models.
• Processes wire coils of up to 3000 kg in cycles of 7 to 20 minutes.
• Optional double loading door configuration to minimize downtime between cycles.

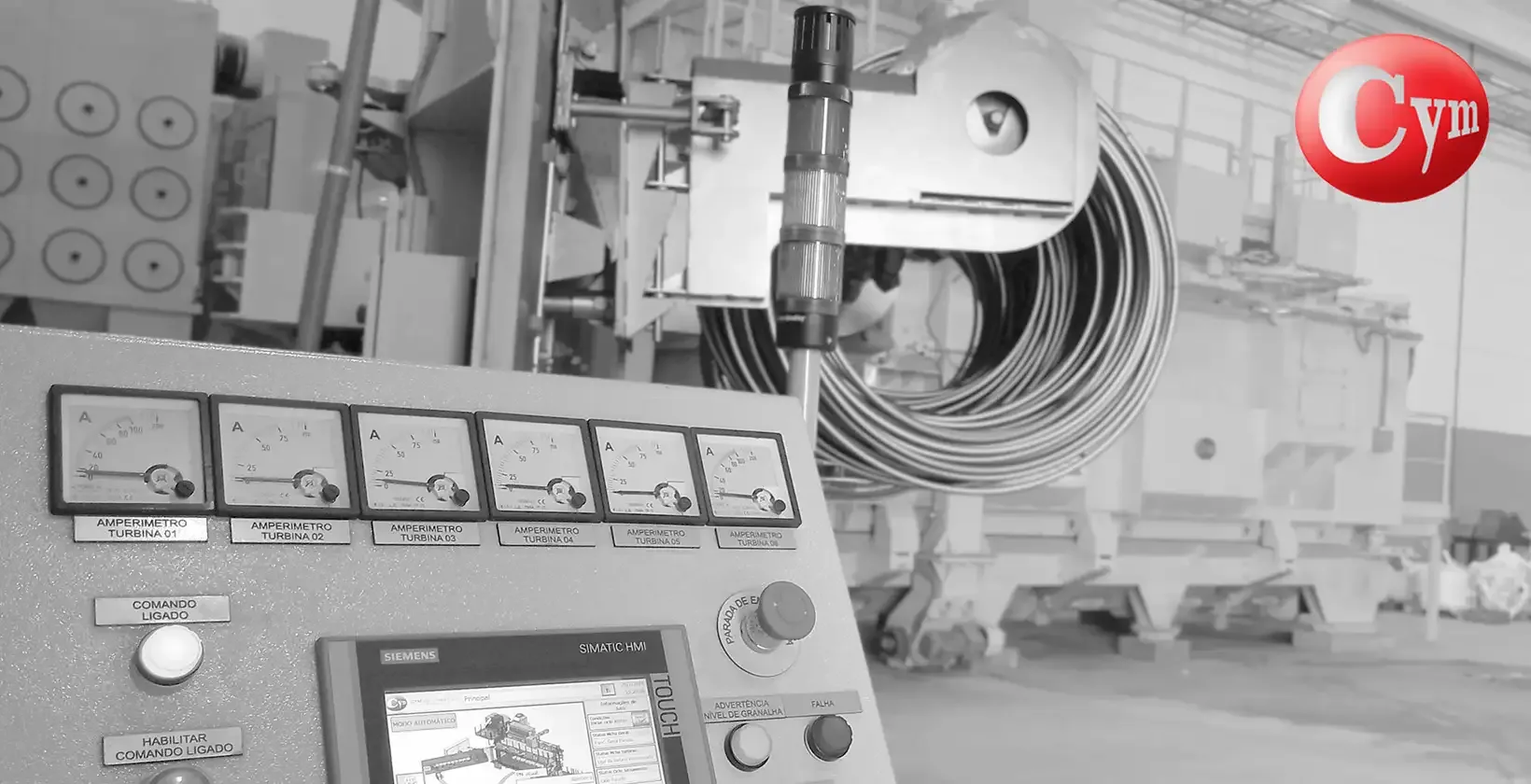

• Automatic process control via PLC with blast curtain formation adjustment.
• No acids, no effluents, no chemical treatment plants required.
