Continuous LPG/CNG cylinder blast machine

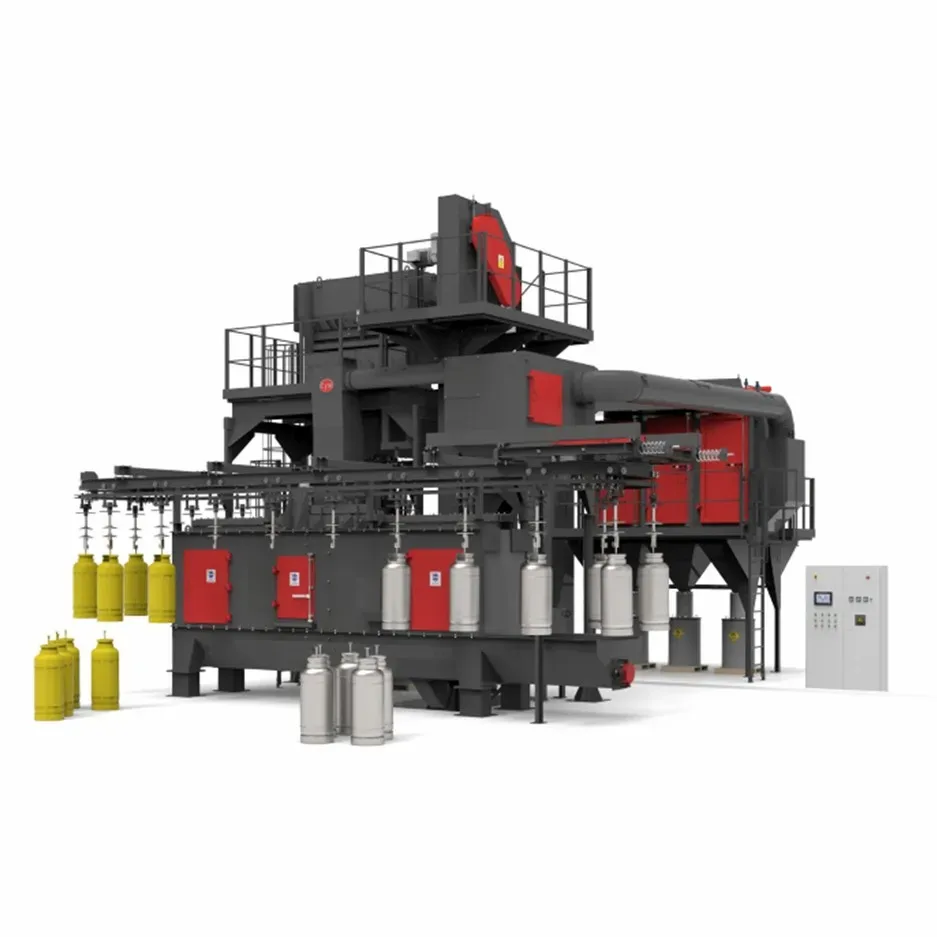

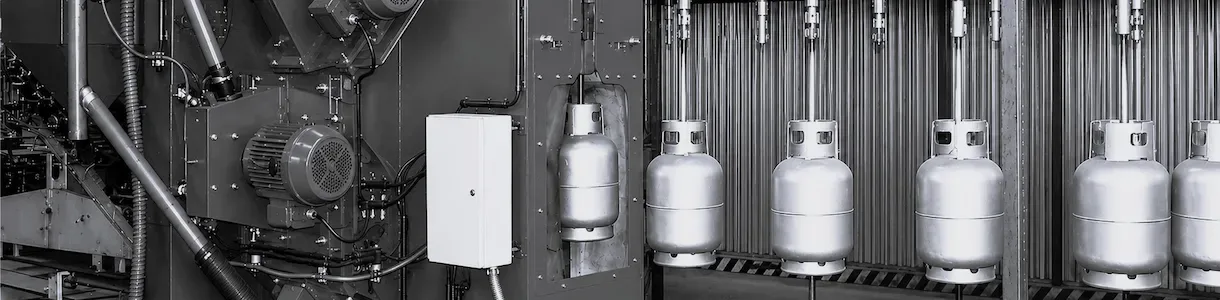

CYM Materiales CAB-TUN-GAR continuous pass-through shot blasting tunnel for in-line blasting of LPG and CNG cylinders up to 45 kg. Cylinders travel suspended on an overhead chain conveyor through the blast tunnel, where multiple blast wheels automatically blast the exterior surface continuously. The system of 2 or 3 blast wheels, with power and output variable per project, ensures complete coverage of the cylinder in a single pass. High-productivity solution for LPG filling companies and distributors with large cylinder volumes in periodic inspection that require high production rates with minimal manual intervention.

• LPG and CNG cylinders up to 45 kg on overhead chain conveyor in continuous process.
• 2 or 3 centrifugal blast wheels — power and output variable per project dimensions.
• Complete blasting of the cylinder exterior surface in a single pass.
• High production rate for gas filling companies with large volumes in periodic inspection.
• Automatic loading and unloading integrated into the overhead conveyor system — minimal manual intervention.
