Horizontal pass plate and H-profile shot blast machine
LINE CH-H
Brushes and blowers for H-profiles — integrable with primer
Automatic continuous-pass shot blast machine for surface treatment of sheet metal, flat plates and H profiles in horizontal position. Incorporates rotary brushes and blowers to remove accumulated abrasive from the part surface, and is integrable with a shop primer booth and drying oven to form a complete surface preparation and protection line.
- Suitable for treatment of sheet metal, flat plates and H profiles in horizontal position prior to painting or coating.
- Built-in rotary brushes and blowers to remove accumulated abrasive from the plate surface before the painting zone.
- Integrable with a shop primer booth and drying oven forming a continuous surface preparation line.
- Adjustable feed speed, adaptable to different plate thicknesses and surface cleanliness requirements.
- Complete solution for plants with integrated blasting and anticorrosive primer application process.
.webp%3Fv%3D1778774364306&w=3840&q=75&dpl=dpl_8Hygxf3G2ZDntZYc4DhGQM285Emk)
TECHNICAL SPECIFICATIONS
Models and capacities
| Model | Effective section | Maximum passage | TURBINES | HP | Speed |
|---|---|---|---|---|---|
| CH-H 1.6 | 1.600 mm 63" | 600 mm 24" | 4 | 10–40 | 0.3–6 m/min |
| CH-H 2.5 | 2.500 mm 98" | 600 mm 24" | 6 | 10–40 | 0.3–6 m/min |
| CH-H 3 | 3.000 mm 118" | 600 mm 24" | 8 | 10–40 | 0.3–6 m/min |
Notes: The maximum part passage dimensions and production speed can be adapted to the customer’s specific requirements. Equipment output varies according to the installed turbine power, the amount of mill scale, paint and oxides, and the required shot blasting finish grade.
Installations

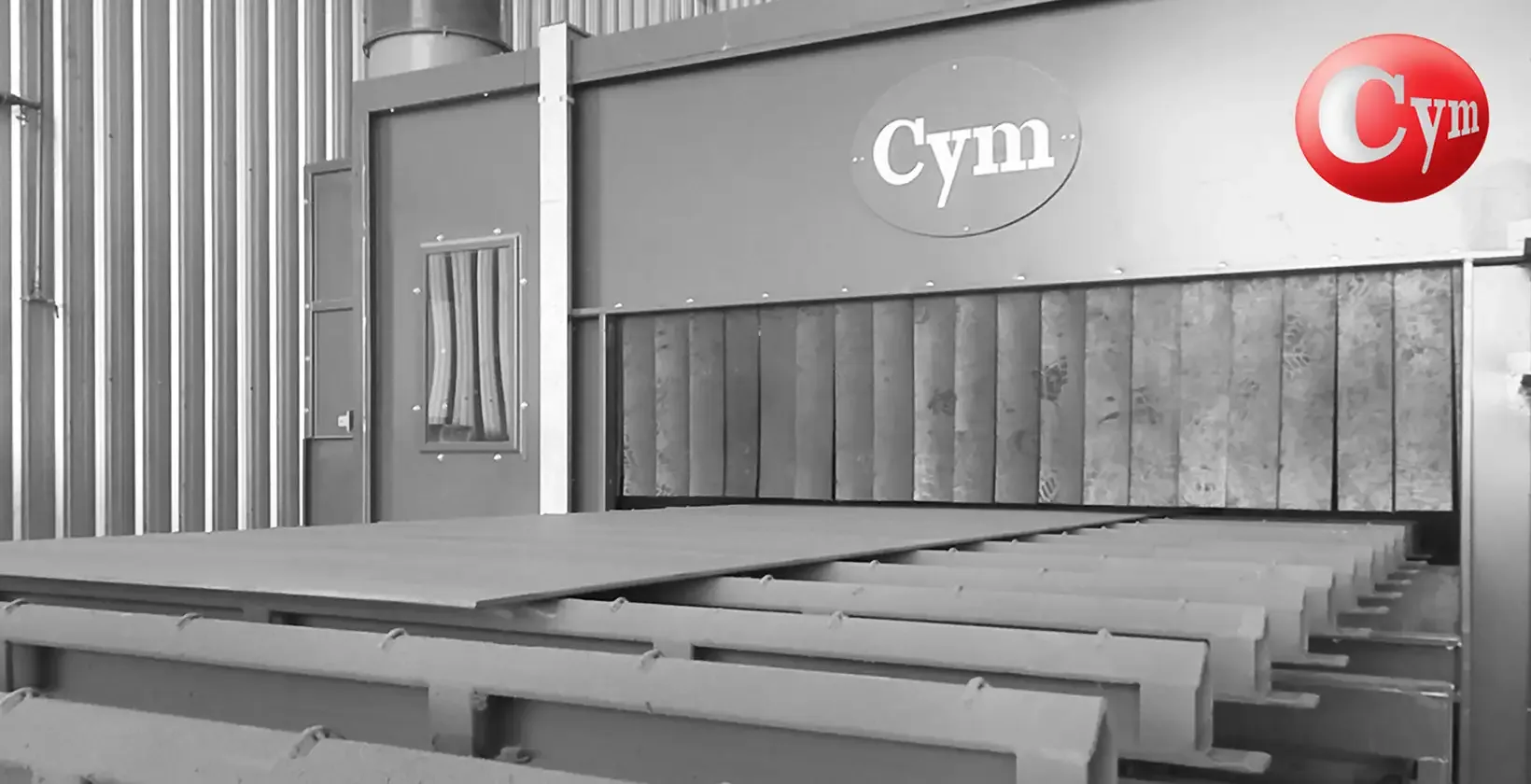

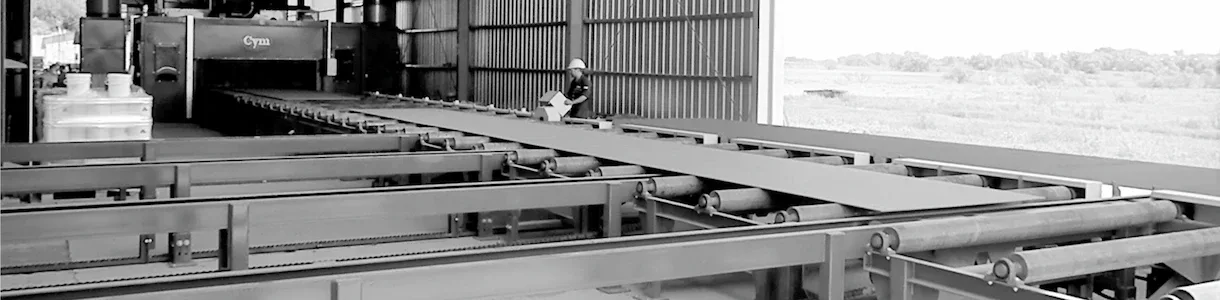

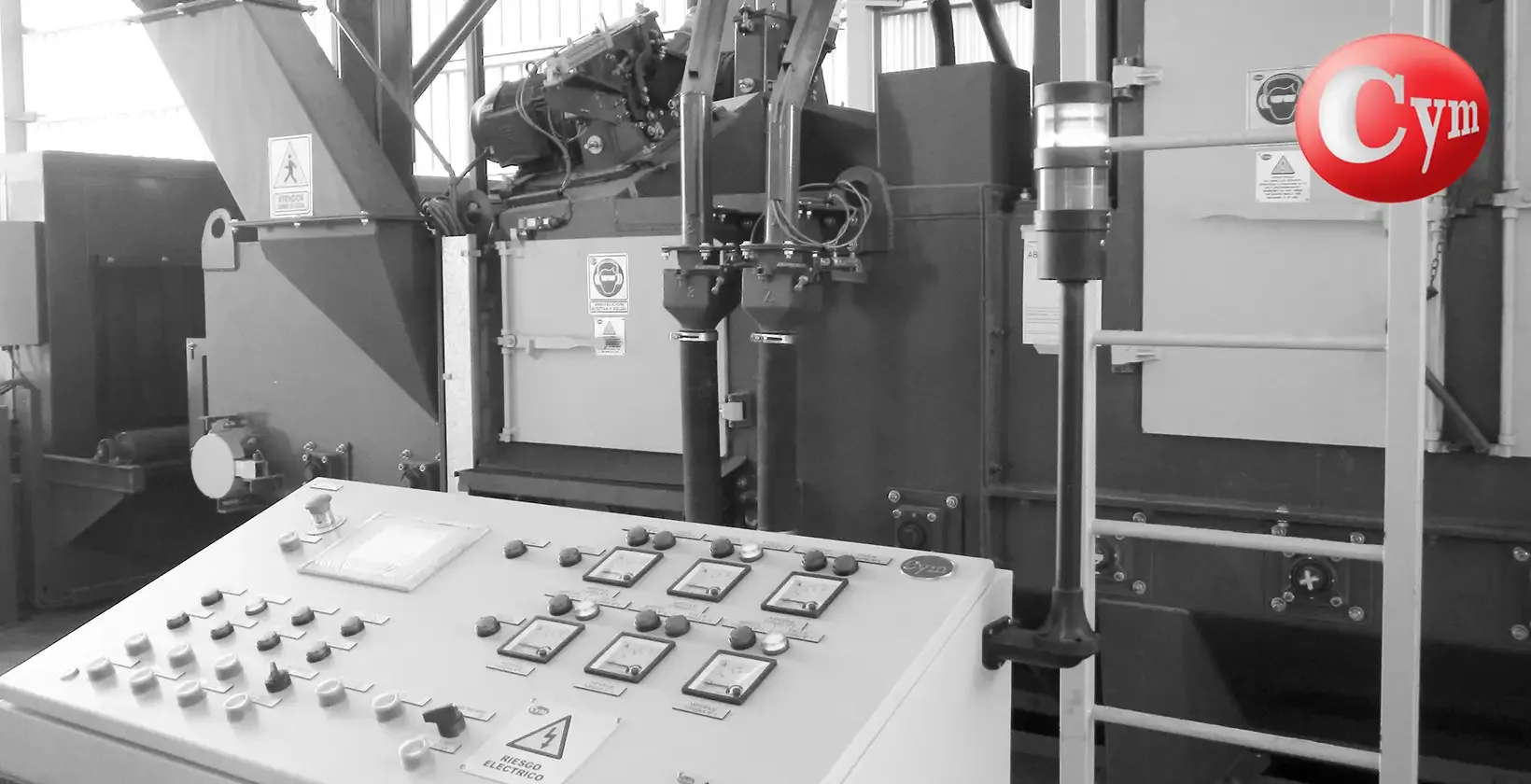

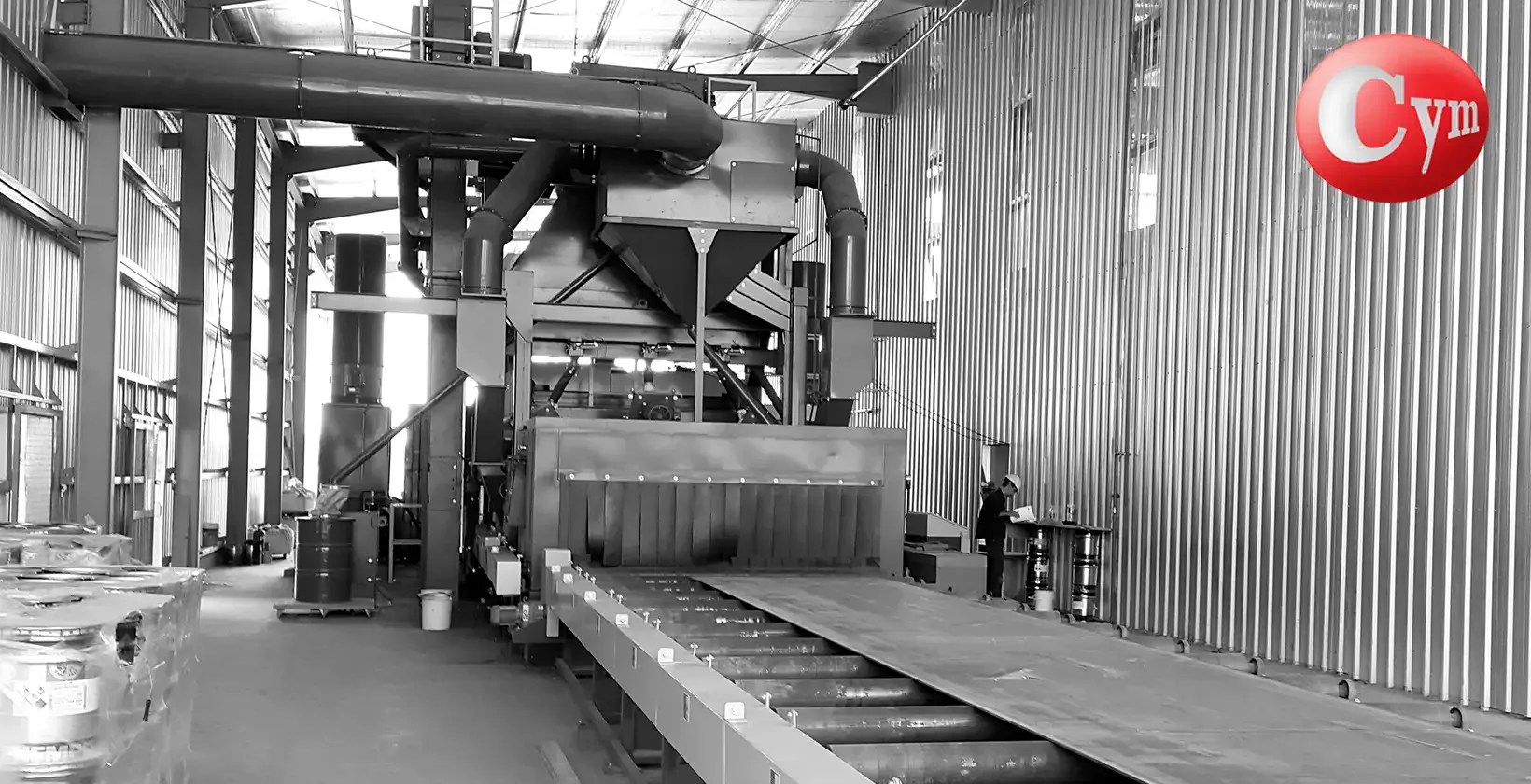

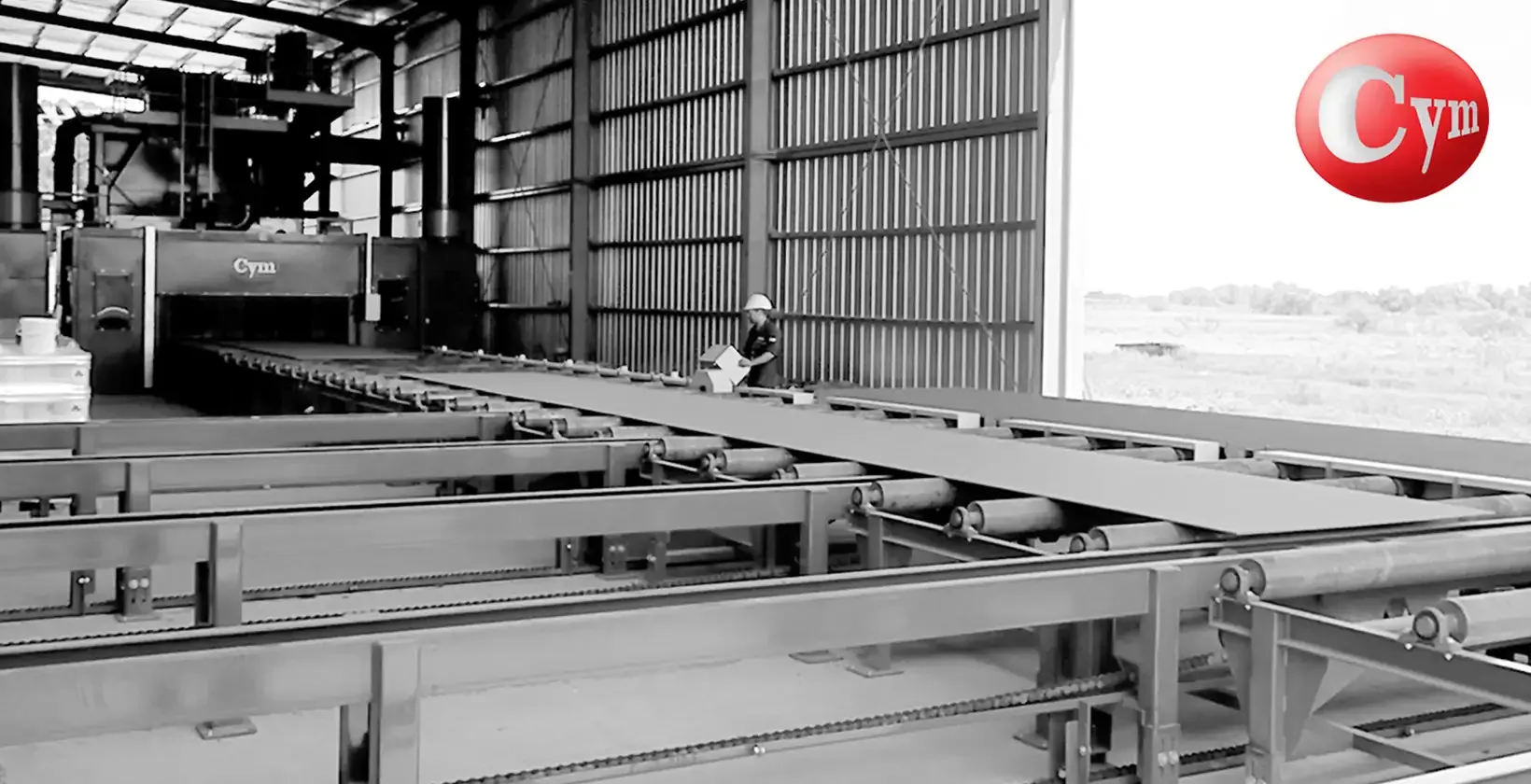

Equipment in operation
