Inclined-wheel profile blast machine
LINE PER-I
Raw material and simple structure shot blasting in continuous pass

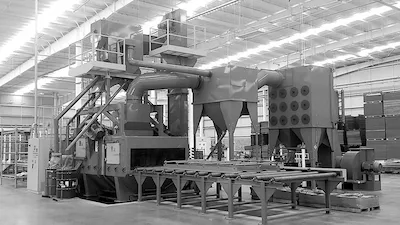

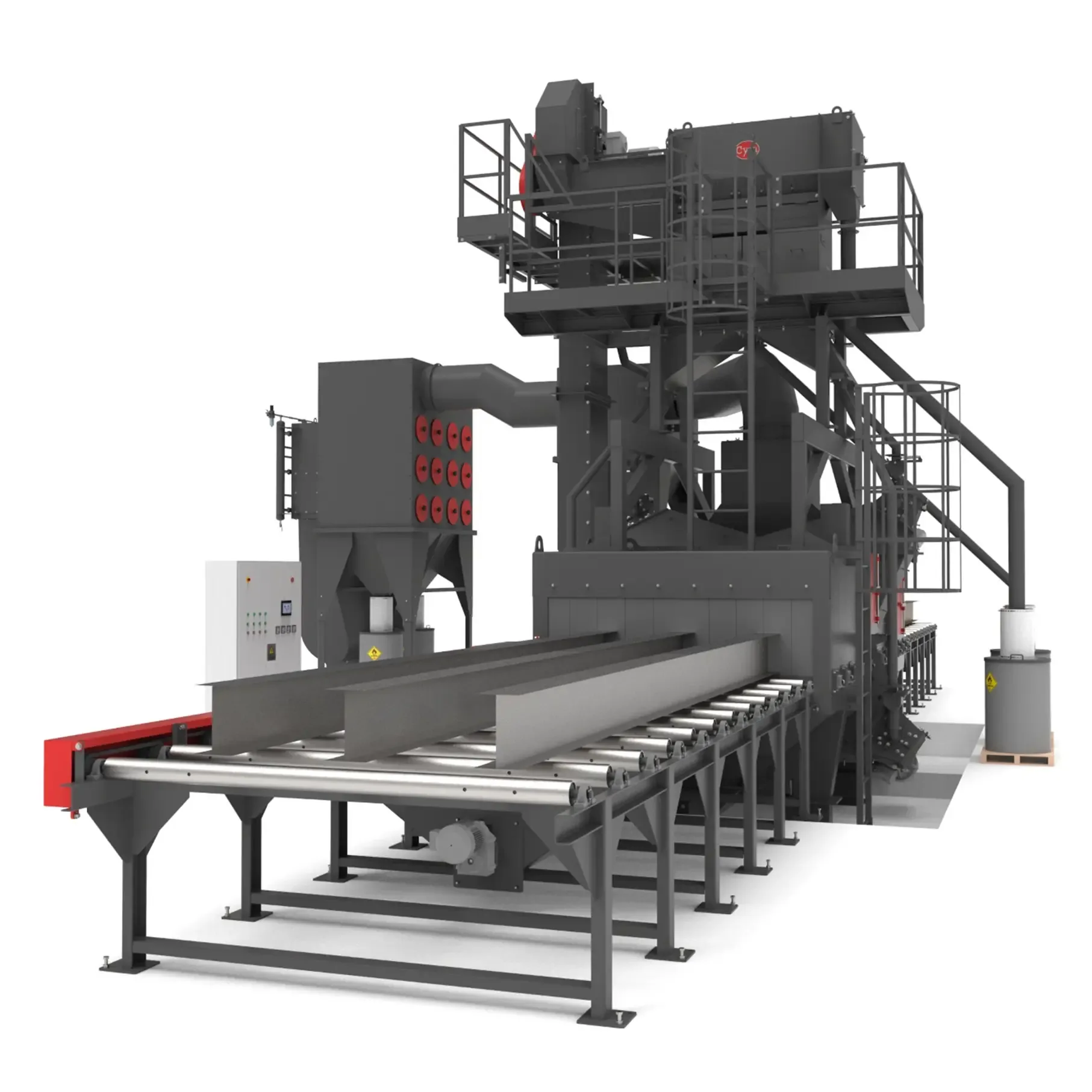

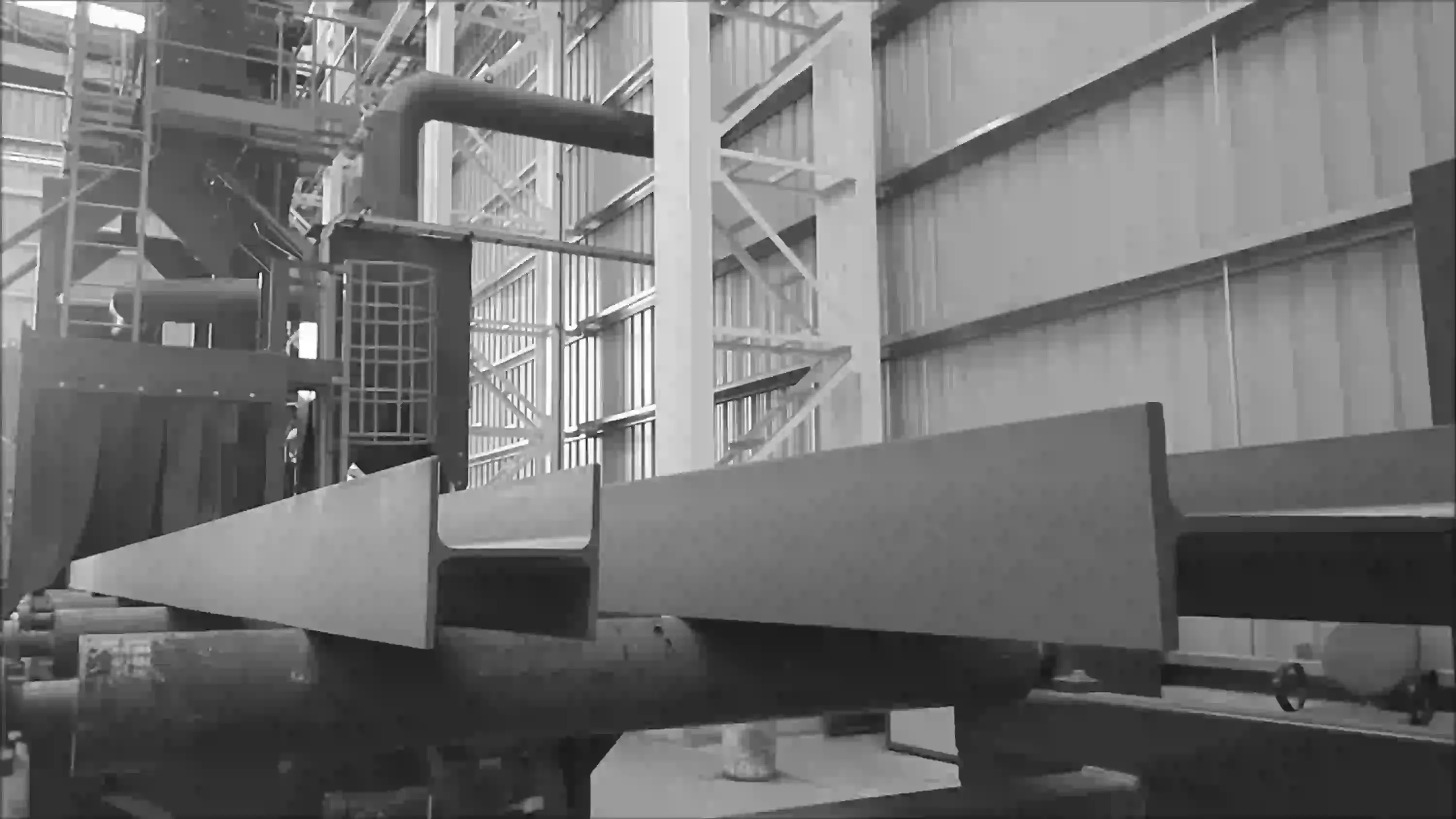

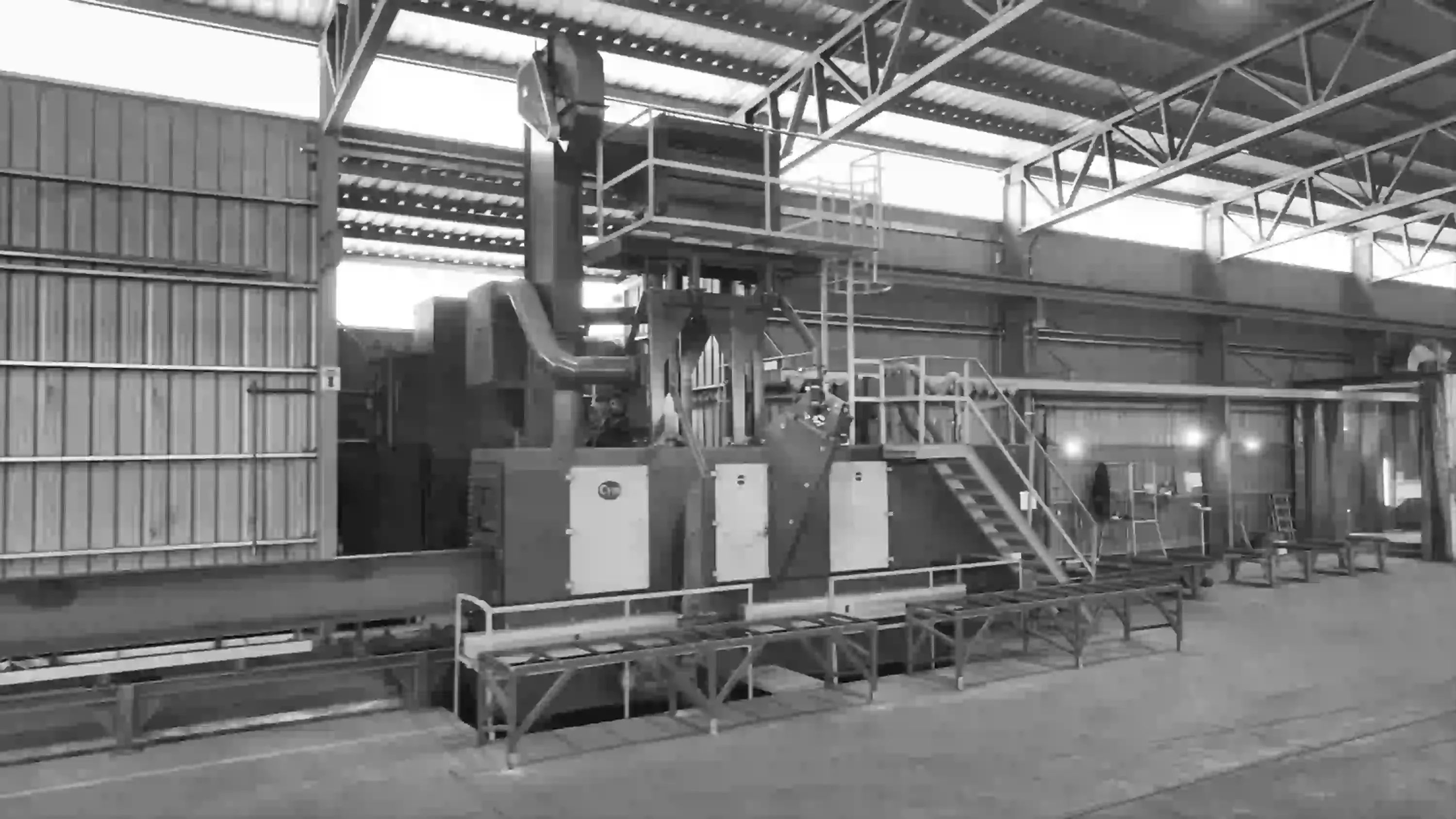

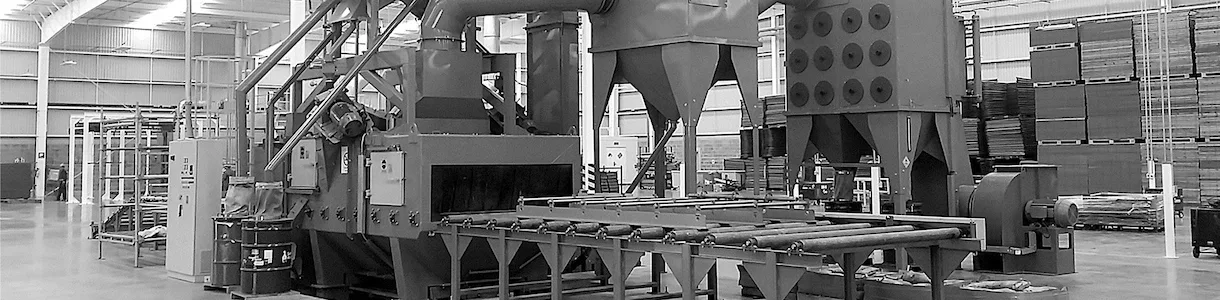

Automatic continuous-pass shot blast machine designed for surface treatment of raw material and simple welded structures. Parts advance on rollers through the blast chamber, equipped with 4 centrifugal blast wheels arranged in inclined position, generating multidirectional impact on the part and achieving uniform coverage on compound cross-section geometries.
- Suitable for processing raw material and simple welded structures, spools and compound cross-section profiles in a single machine.
- 4 blast wheels in inclined position for multidirectional impact on geometries that 90° configurations cannot reach efficiently.
- Roller conveyor for parts resting directly on rollers or mounted on support fixtures.
- Adjustable conveyor speed and scalable power output to match production requirements.
- Integrable with structural fabrication lines and surface preparation prior to painting or coating.
.webp%3Fv%3D1778774364306&w=3840&q=75&dpl=dpl_8Hygxf3G2ZDntZYc4DhGQM285Emk)
TECHNICAL SPECIFICATIONS
Models and capacities
| MODEL | EFECTIVE SECTION | MAXIMUM PASSAGE | TURBINES | HP | SPEED m/min | ||
|---|---|---|---|---|---|---|---|
| WIDHT | HEIGHT | WIDHT | HEIGHT | ||||

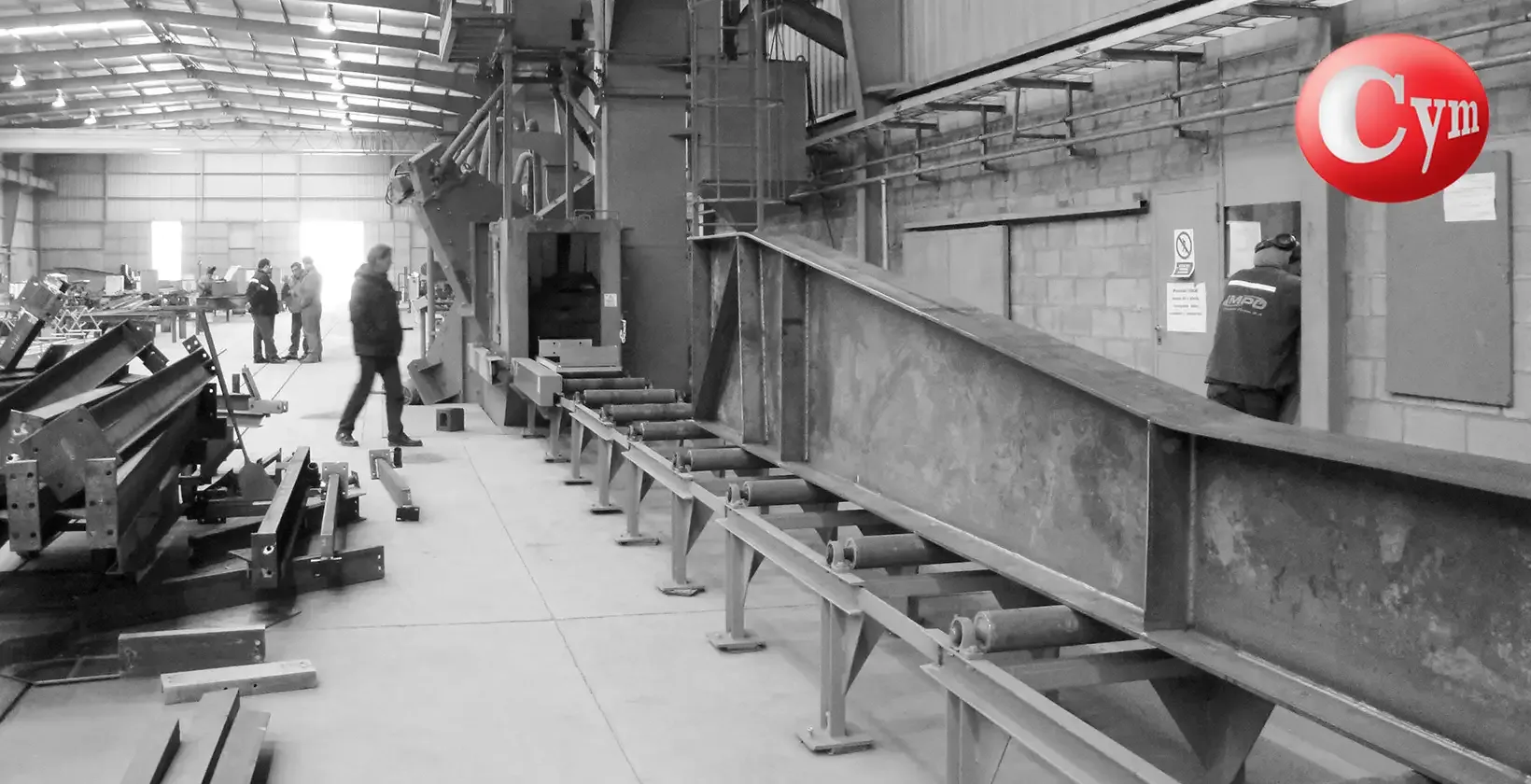

| PER I 08X17 | 600mm 24" | 1500mm 60" | 800mm 31" | 1700mm 67" | 4 | 10-30 | 0.3-2 |

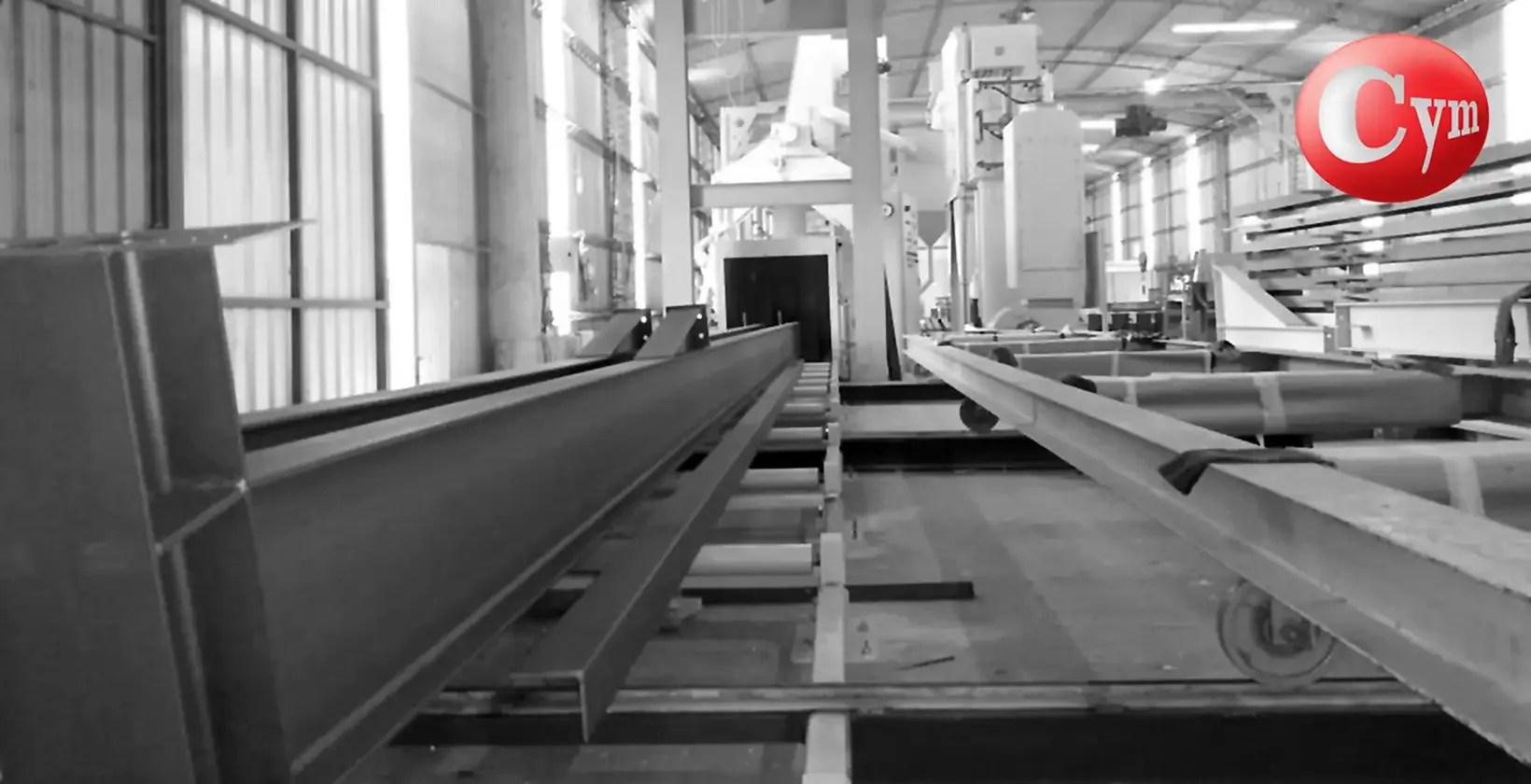

| PER I 11X13 | 1000mm 40" | 1000mm 40" | 1100mm 43" | 1300mm 50" | 4 | 10-30 | 1-2 |

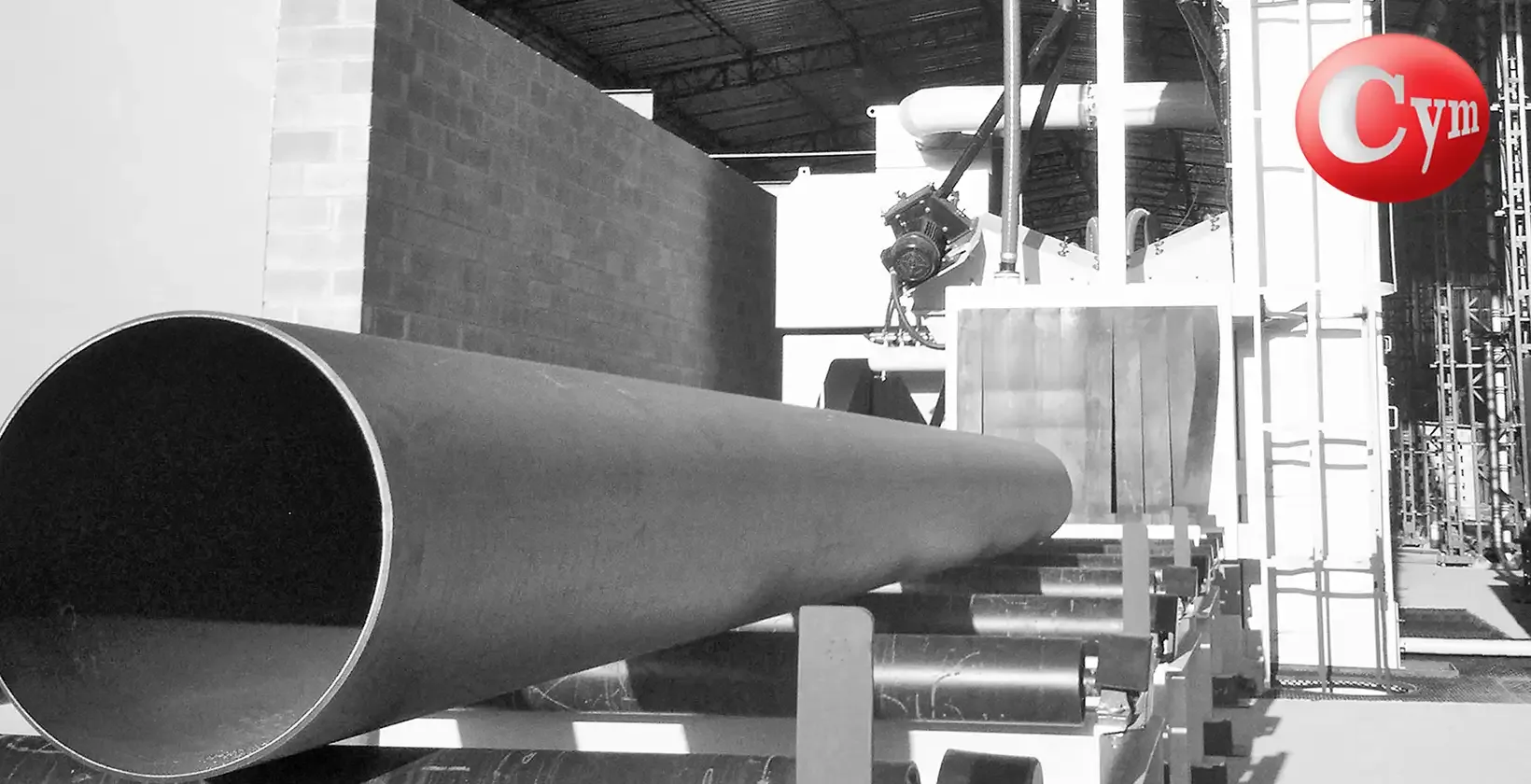

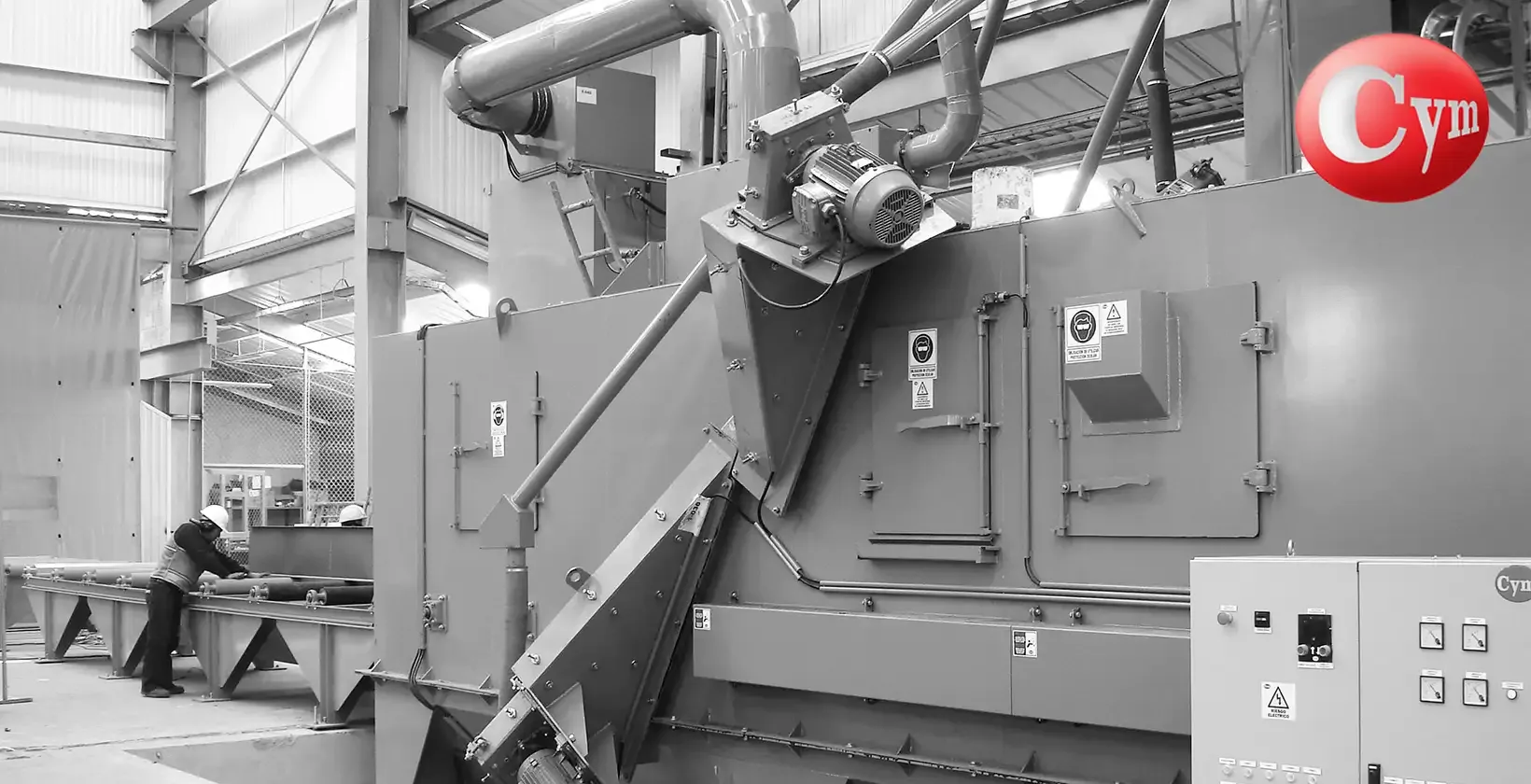

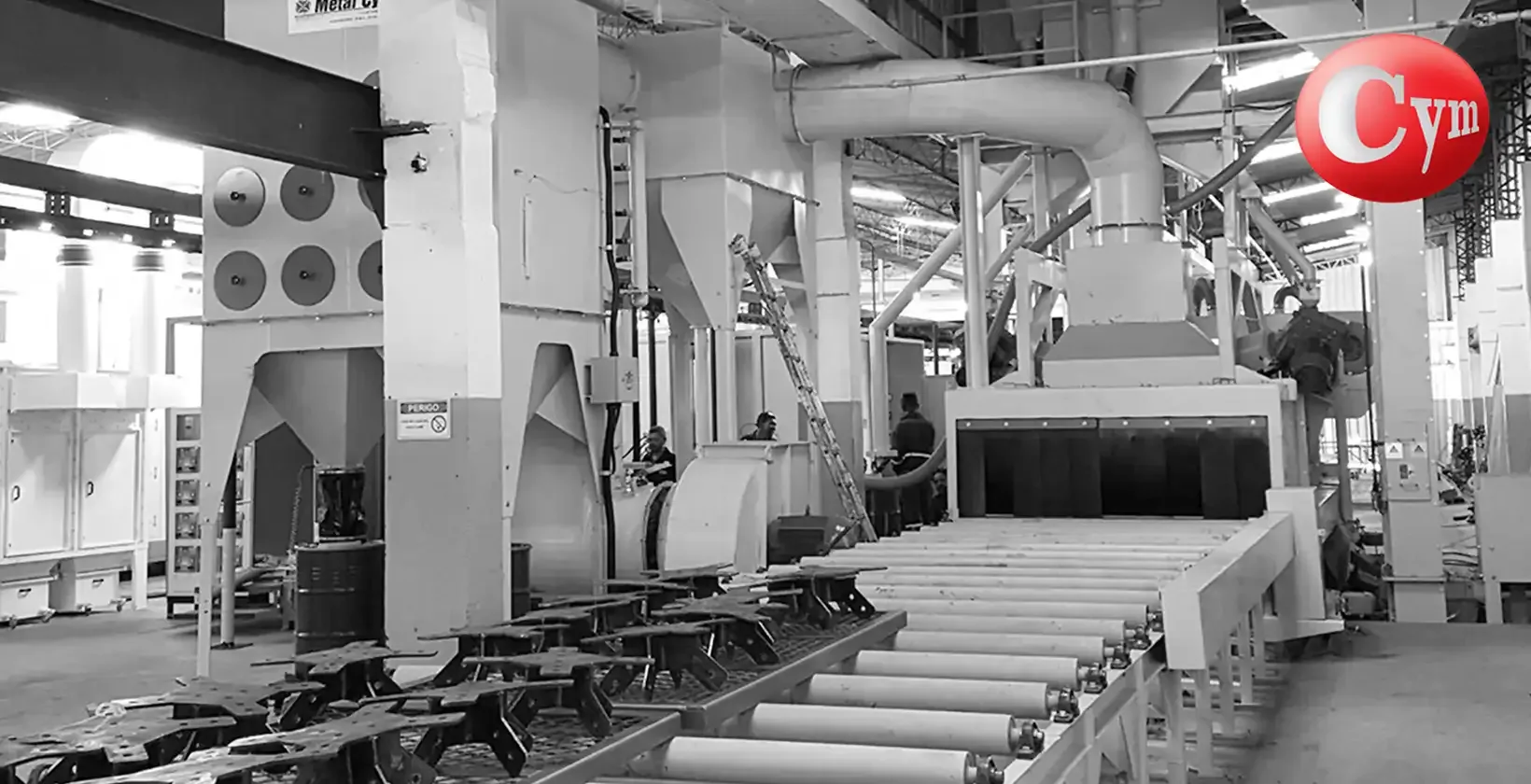

| PER I 13X14 | 1250mm 50" | 1250mm 50" | 1300mm 51" | 1400mm 55" | 4 | 10-30 | 1-2 |
| PER I 21X08 | 2000mm 78" | 600mm 24" | 2100mm 80" | 800mm 31" | 4 | 10-30 | 1-2 |
Notes: The maximum part passage dimensions and production speed can be adapted to the customer’s specific requirements. Equipment output varies according to the installed turbine power, the amount of mill scale, paint and oxides, and the required shot blasting finish grade.
