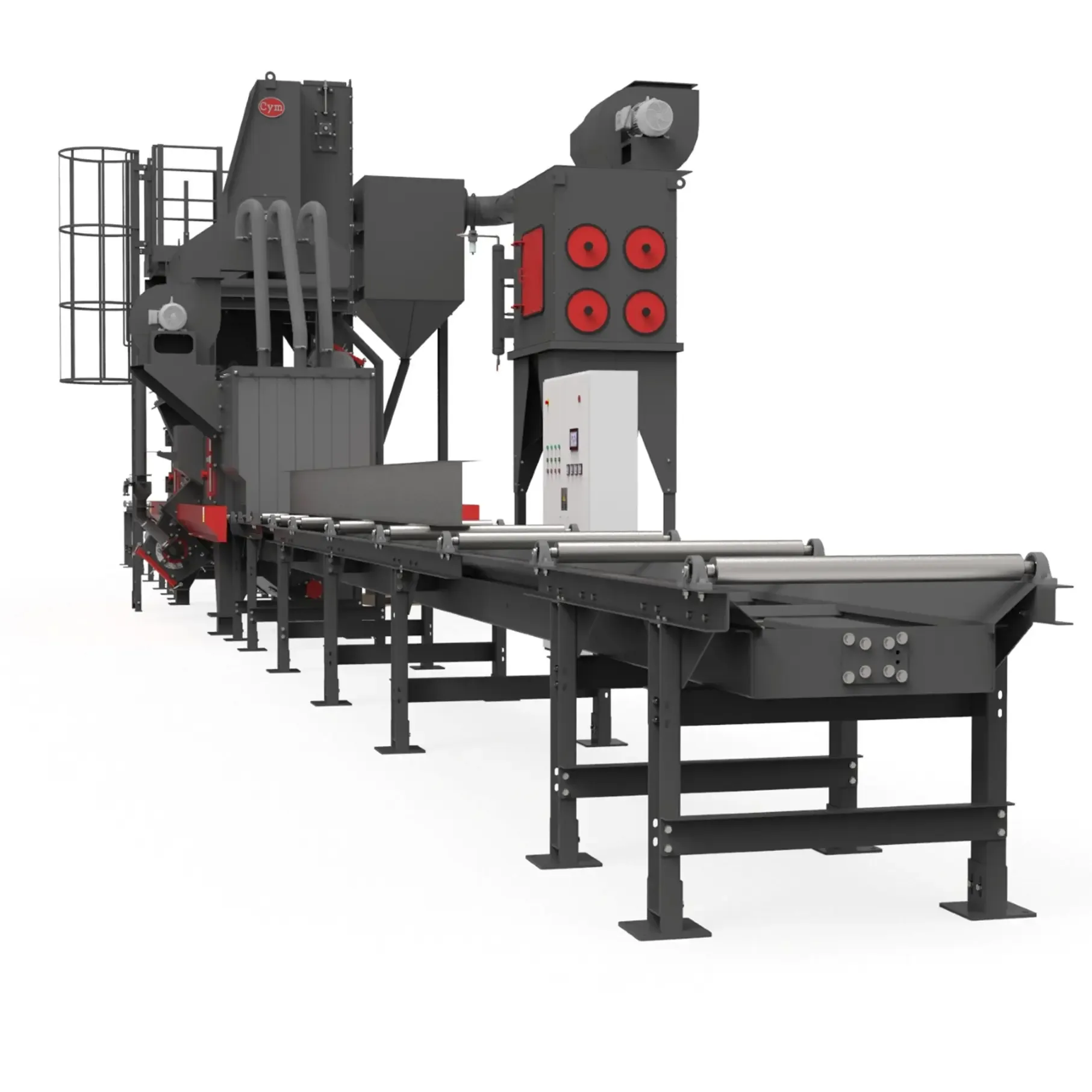

Profile, tube and bar shot blast machine
LINE PER-R
Raw material shot blasting in continuous pass
Automatic continuous-pass shot blast machine designed for pre-blasting of structural raw material: profiles, tubes and bars. Parts advance on rollers through the blast chamber, equipped with 4 centrifugal blast wheels positioned at 90° to the travel path. This configuration maximizes process speed with minimum installed power.
- Suitable for raw material pre-blasting: H, L, U, double-T profiles, tubes and bars of various sections.
- 4 blast wheels at 90° for maximum process speed and minimum operating cost.
- Configurable-length roller conveyor, adaptable to each plant's production rate.
- Adjustable feed speed according to base material and required blast quality.
- Low investment and maintenance cost solution for high-cadence raw material lines.
TECHNICAL SPECIFICATIONS
Models and capacities
| MODEL | Effective section | Maximum passage | Turbines | HP | Speed m/min | ||
|---|---|---|---|---|---|---|---|
| Width | Height | Width | Height | ||||
| PER-R 4X4 | 400 MM 16" | 400 MM 16" | 400 MM 16" | 400 MM 16" | 4 | 10 | 1-2 |
| PER-R 8X10 | 800 MM 31" | 1000 MM 40" | 800 MM 31" | 1000 MM 40" | 4 | 10-15 | 1-2 |
Notes: The maximum part passage dimensions and production speed can be adapted to the customer’s specific requirements. Equipment output varies according to the installed turbine power, the amount of mill scale, paint and oxides, and the required shot blasting finish grade.

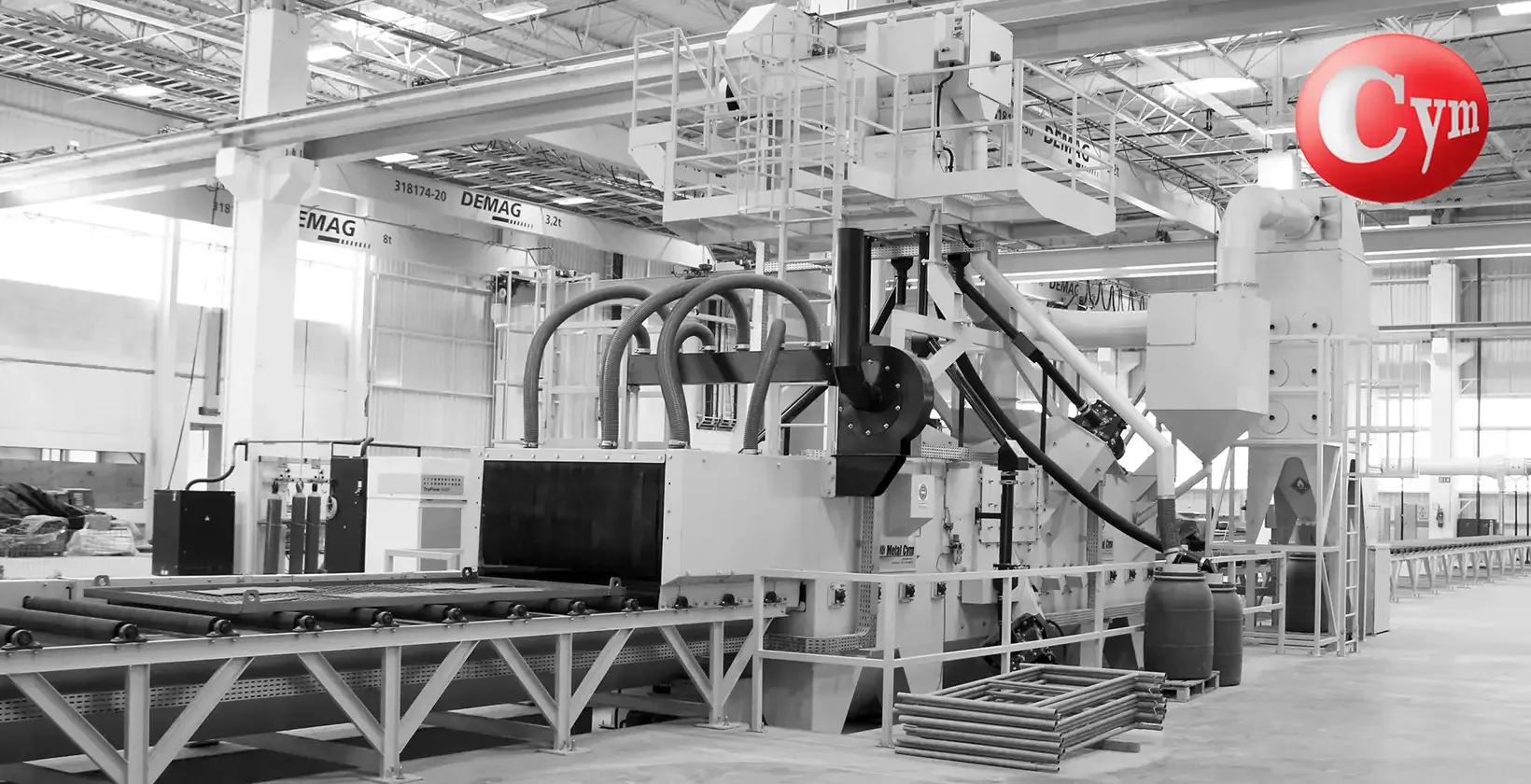

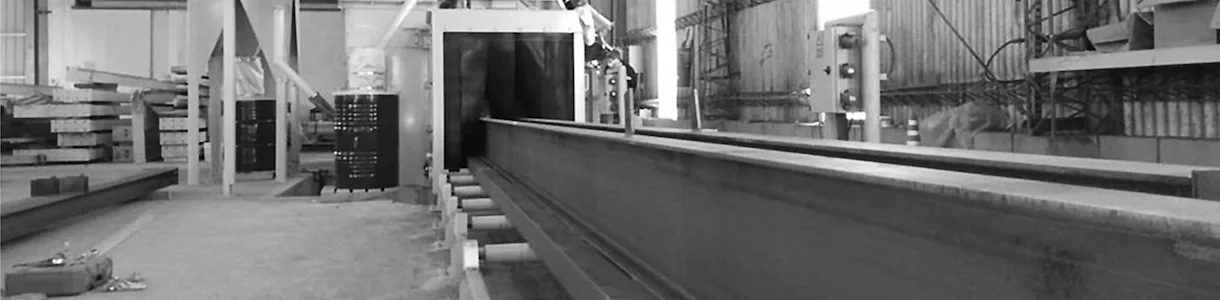

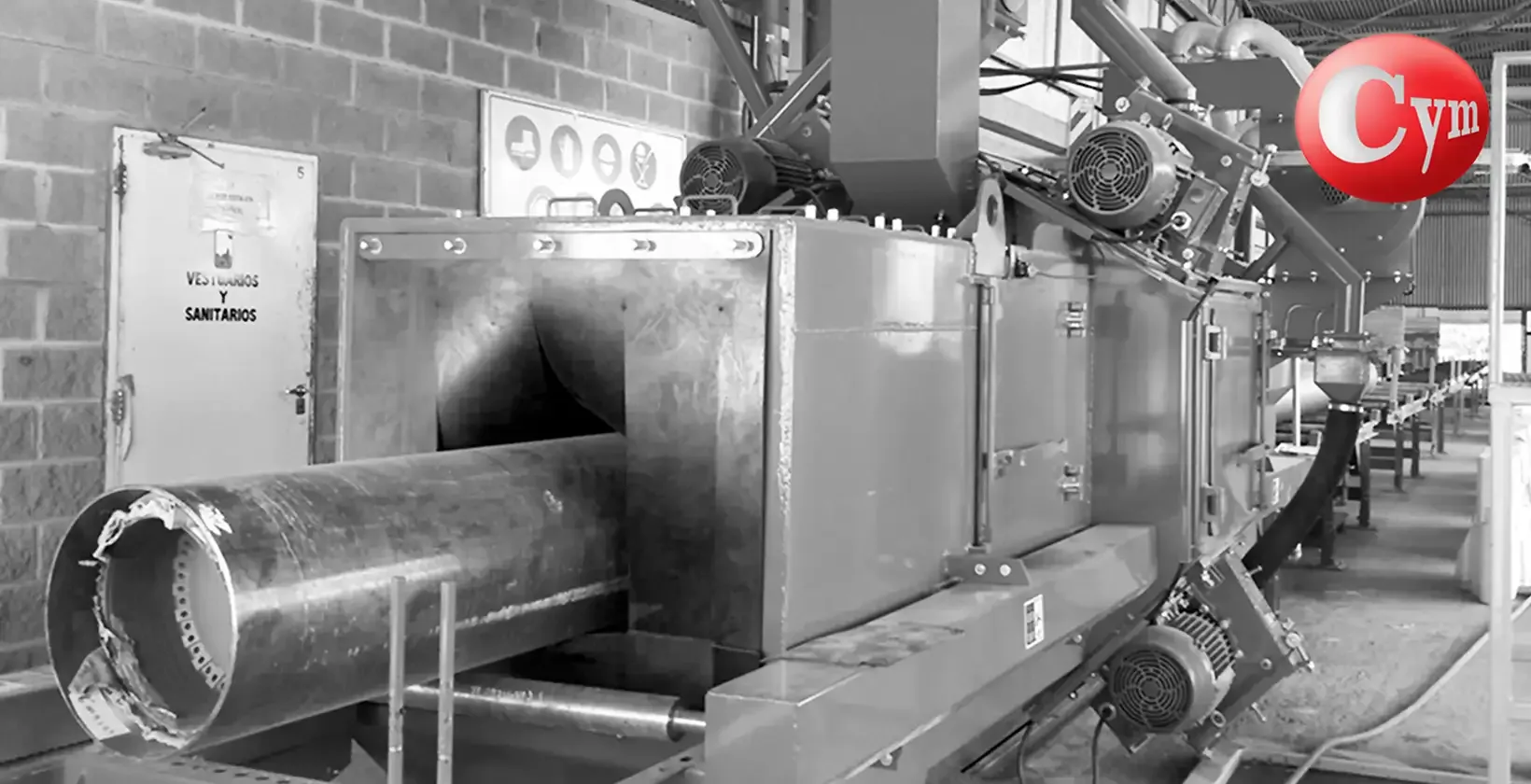

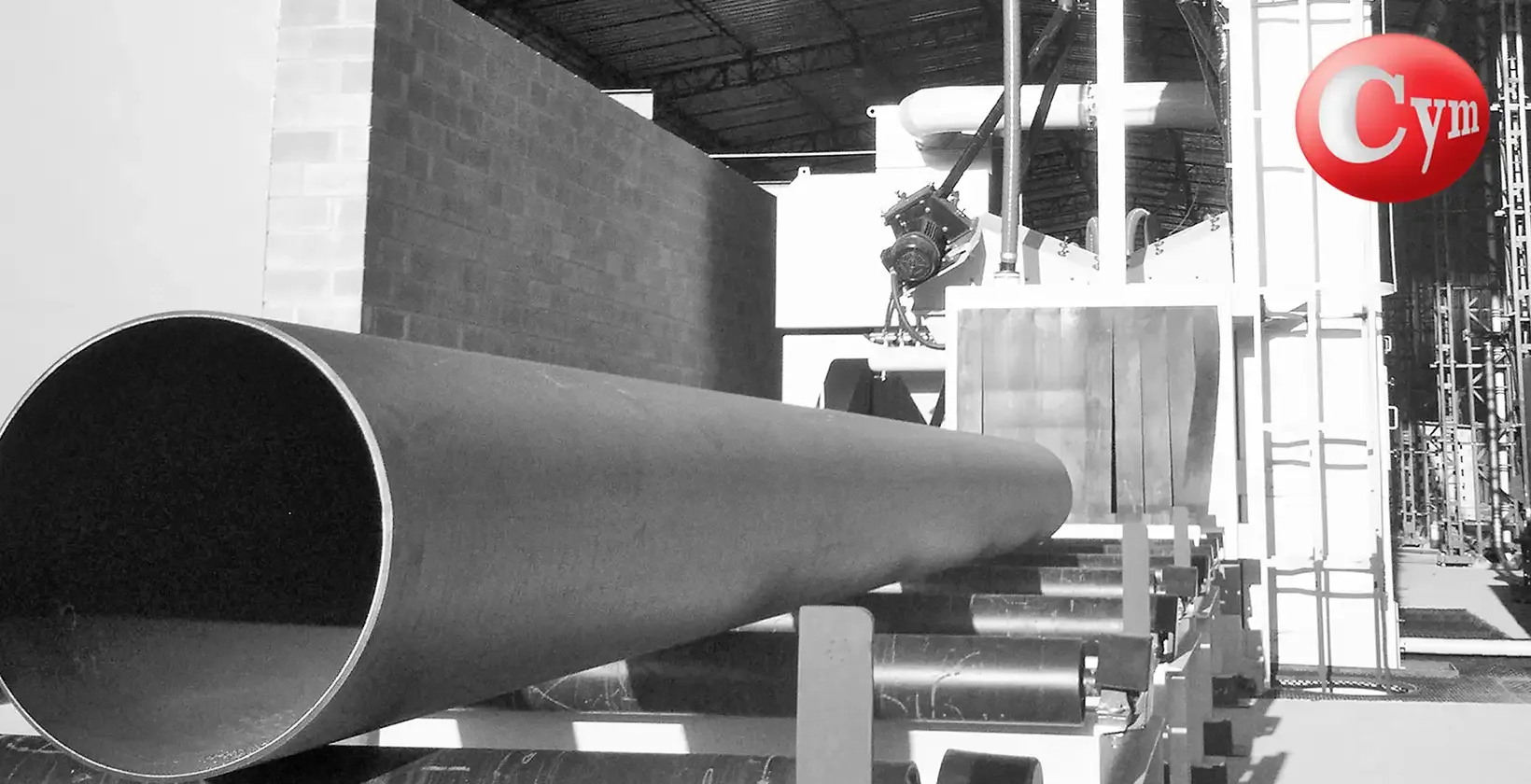

Installations
Equipment in operation
Videos
Equipment in action
Special Projects
Can't find the equipment you need?
CYM Materiales develops it.
Our Engineering and Sales team works alongside the client to design a custom solution, reducing operating costs and maximizing productivity. Every project starts with a detailed technical assessment and ends with a machine built and tested at our plant
