Vertical-pass plate shot blast machine
LINE CH-V
Plate shot blasting with grit or shot abrasive and primer integration
Automatic continuous-pass shot blast machine for surface treatment of sheet metal and flat plates in vertical position. The vertical plate position eliminates abrasive accumulation, eliminating the need for brushes and blowers, with lower investment and maintenance cost. Integrable with a shop primer booth and drying oven to form a complete surface preparation and protection line.
- Suitable for surface treatment of sheet metal and flat plates prior to cutting, forming or painting.
- No brushes or blowers required: the vertical position eliminates abrasive accumulation on the plate surface.
- Allows selection of spherical or angular shot according to the roughness profile required by the coating.
- Horizontal or vertical loading depending on available floor space, with smaller footprint than horizontal-pass machines
- Integrable with a shop primer booth and drying oven to form a complete surface preparation and protection line.
.webp%3Fv%3D1778774364306&w=3840&q=75&dpl=dpl_8Hygxf3G2ZDntZYc4DhGQM285Emk)
TECHNICAL SPECIFICATIONS
Models and capacities
| MODEL | PASSAGE WIDTH | PASSAGE HEIGHT | TURBINES | HP | SPEED m/min |
|---|---|---|---|---|---|
| CH 1.6 V | 100 mm 4" | 1600 mm 63" | 4 | 10-40 | 0.3-6 |
| CH 2.5 V | 100 mm 4" | 2500 mm 98" | 4 | 10-40 | 0.3-6 |
| CH 3 V | 100 mm 4" | 3000 mm 118" | 4 | 10-40 | 0.3-6 |
Notes: The maximum part passage dimensions and production speed can be adapted to the customer’s specific requirements. Equipment output varies according to the installed turbine power, the amount of mill scale, paint and oxides, and the required shot blasting finish grade.
Installations

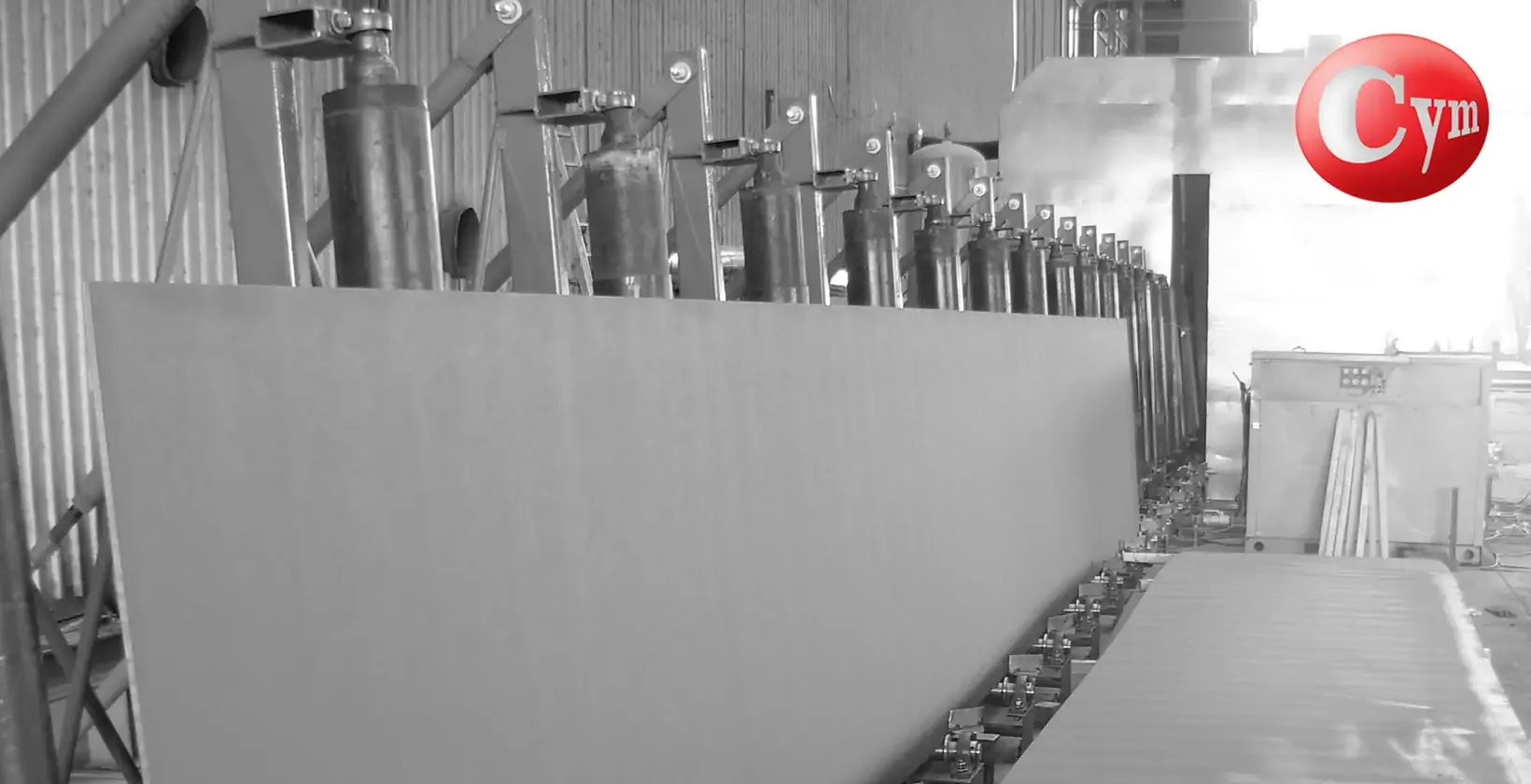

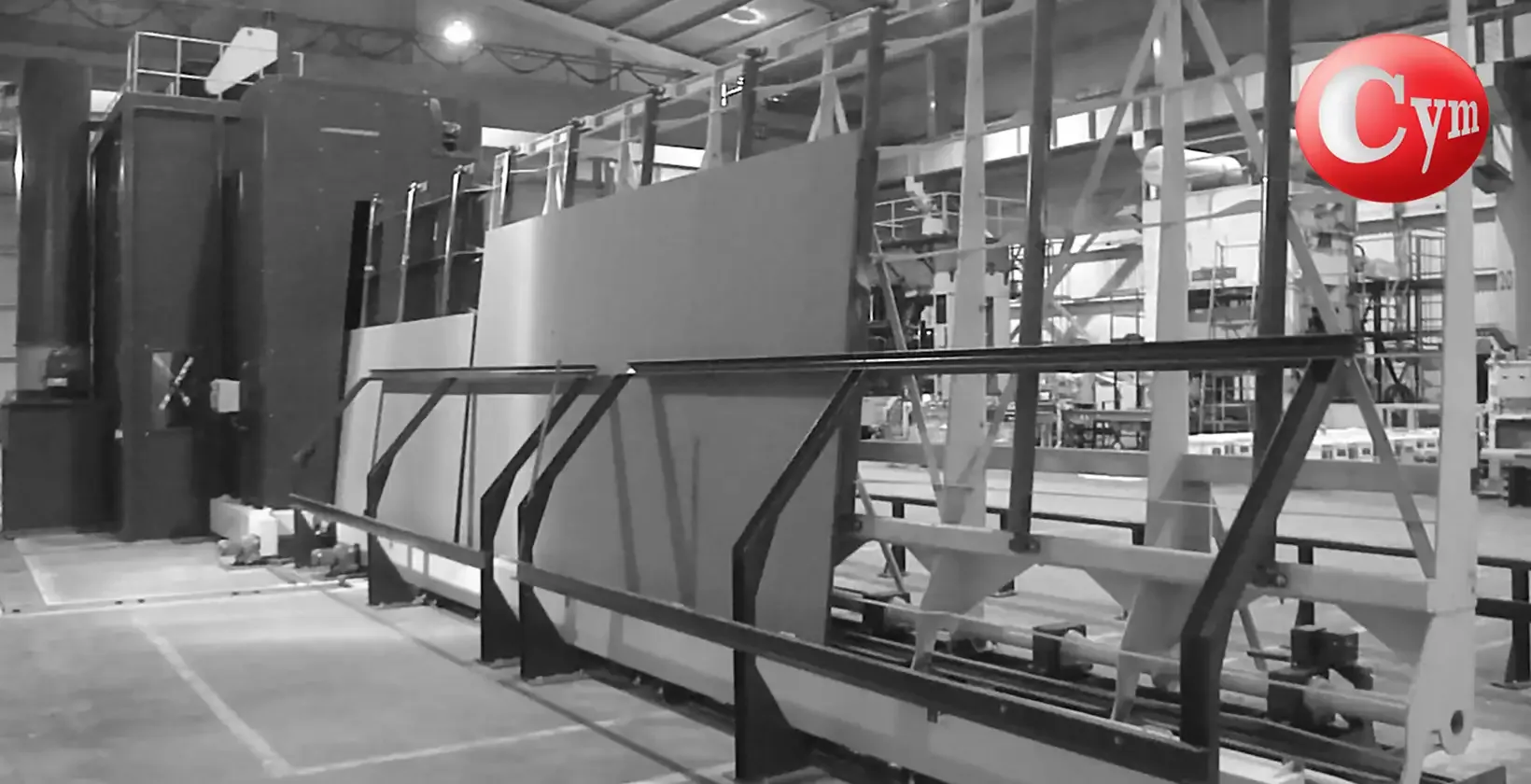

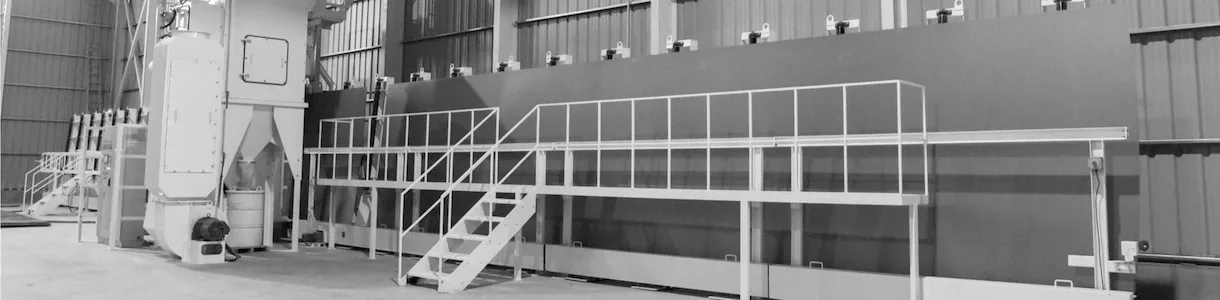

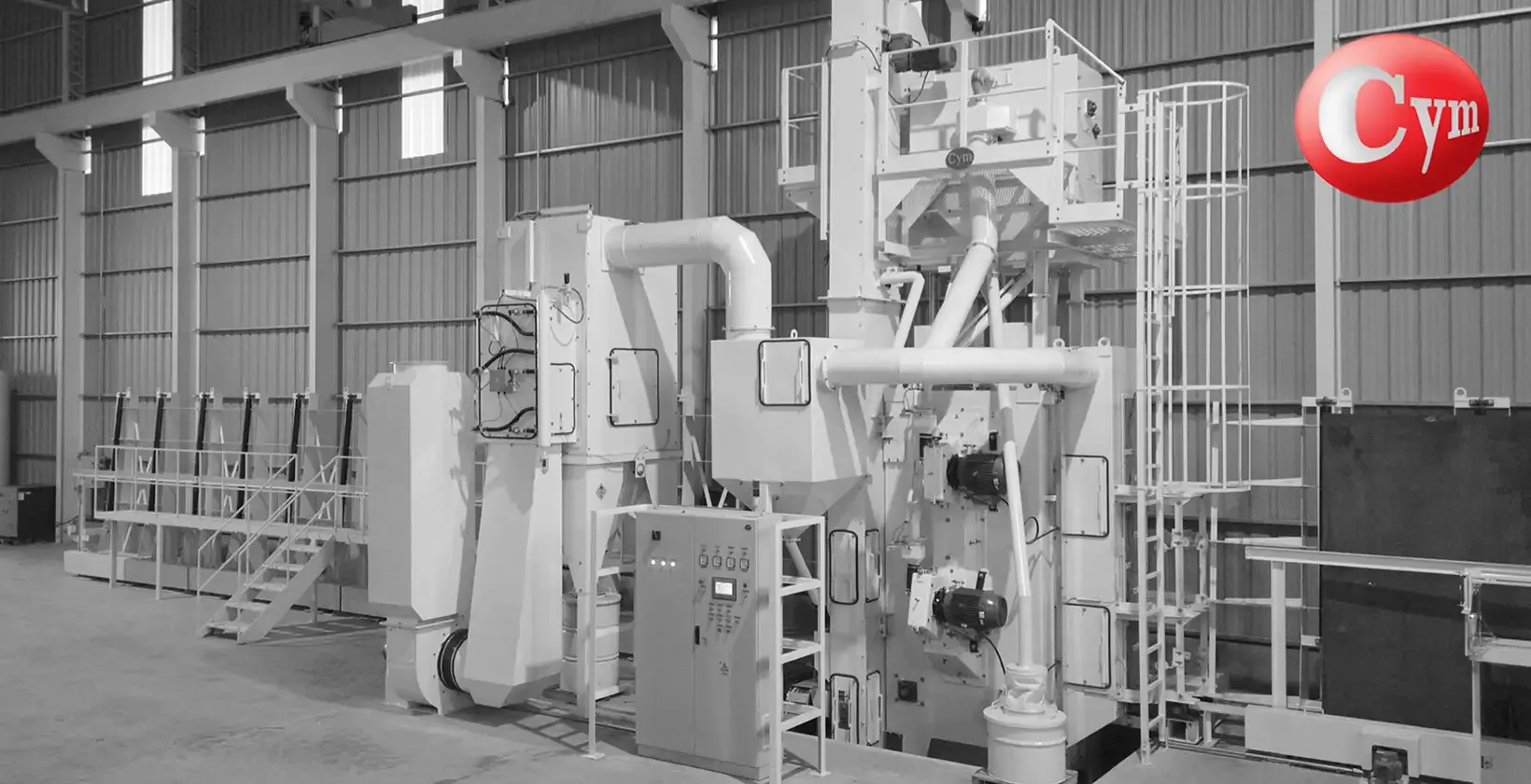

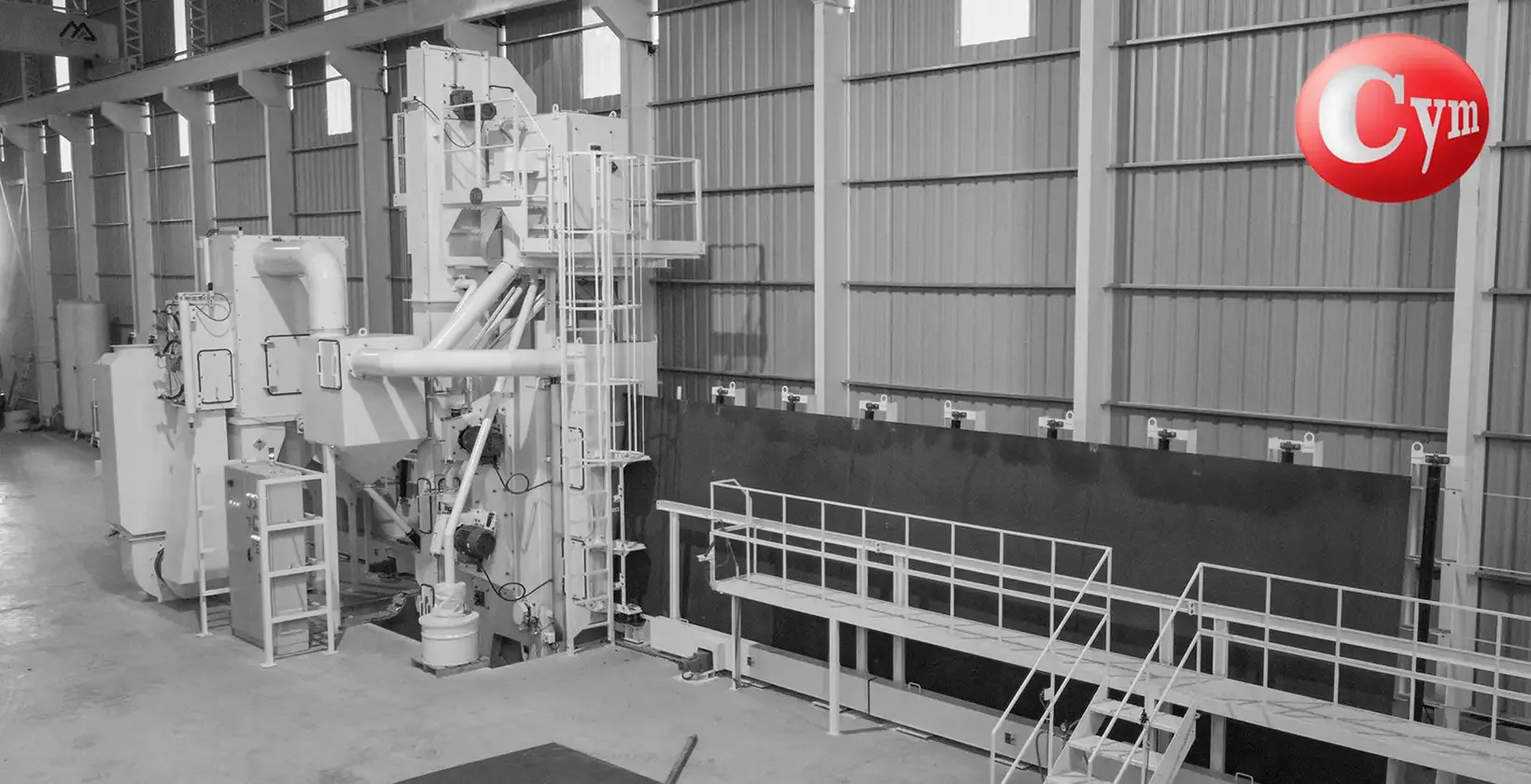

Equipment in operation
