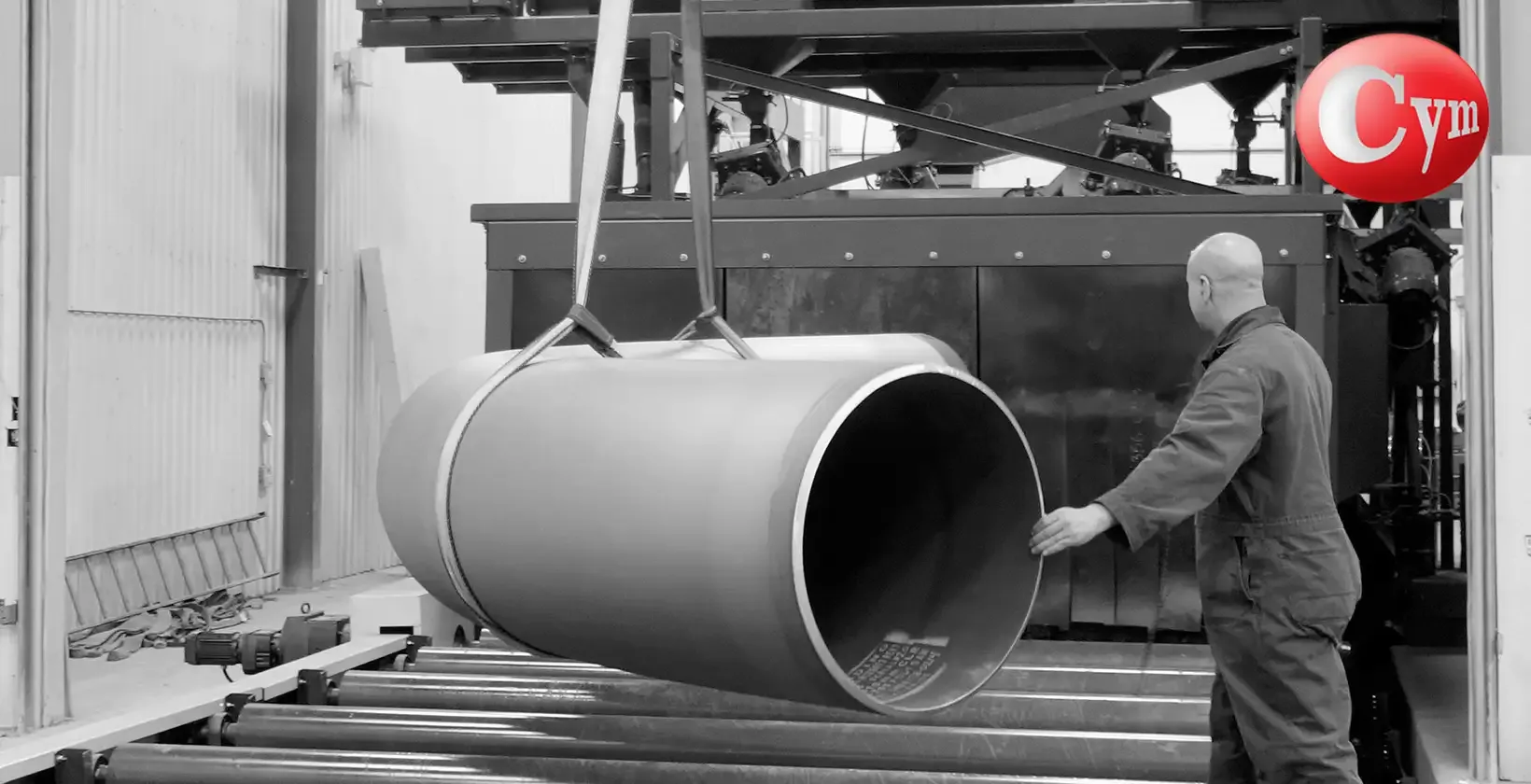

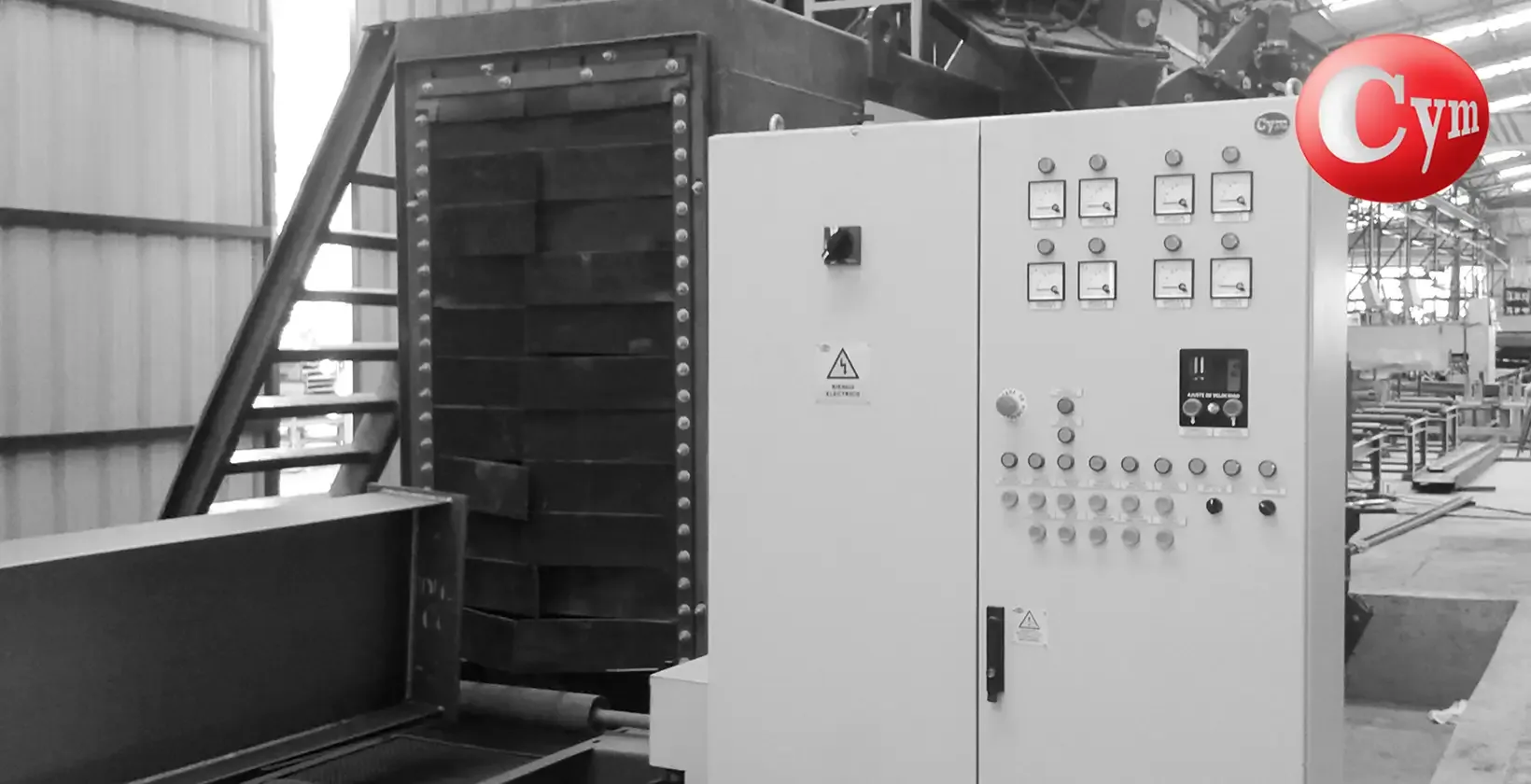

Complex structure shot blast machine on roller conveyor
EST-ROD LINE
Full coverage with no blind spots for large-scale steel structures

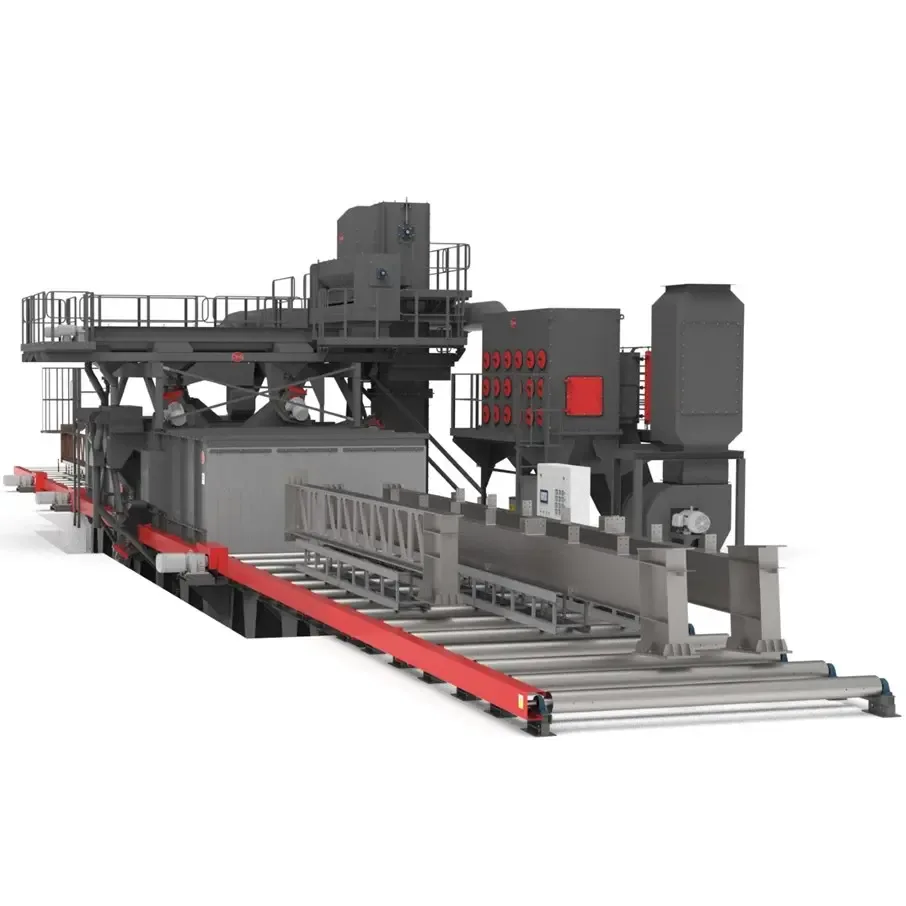

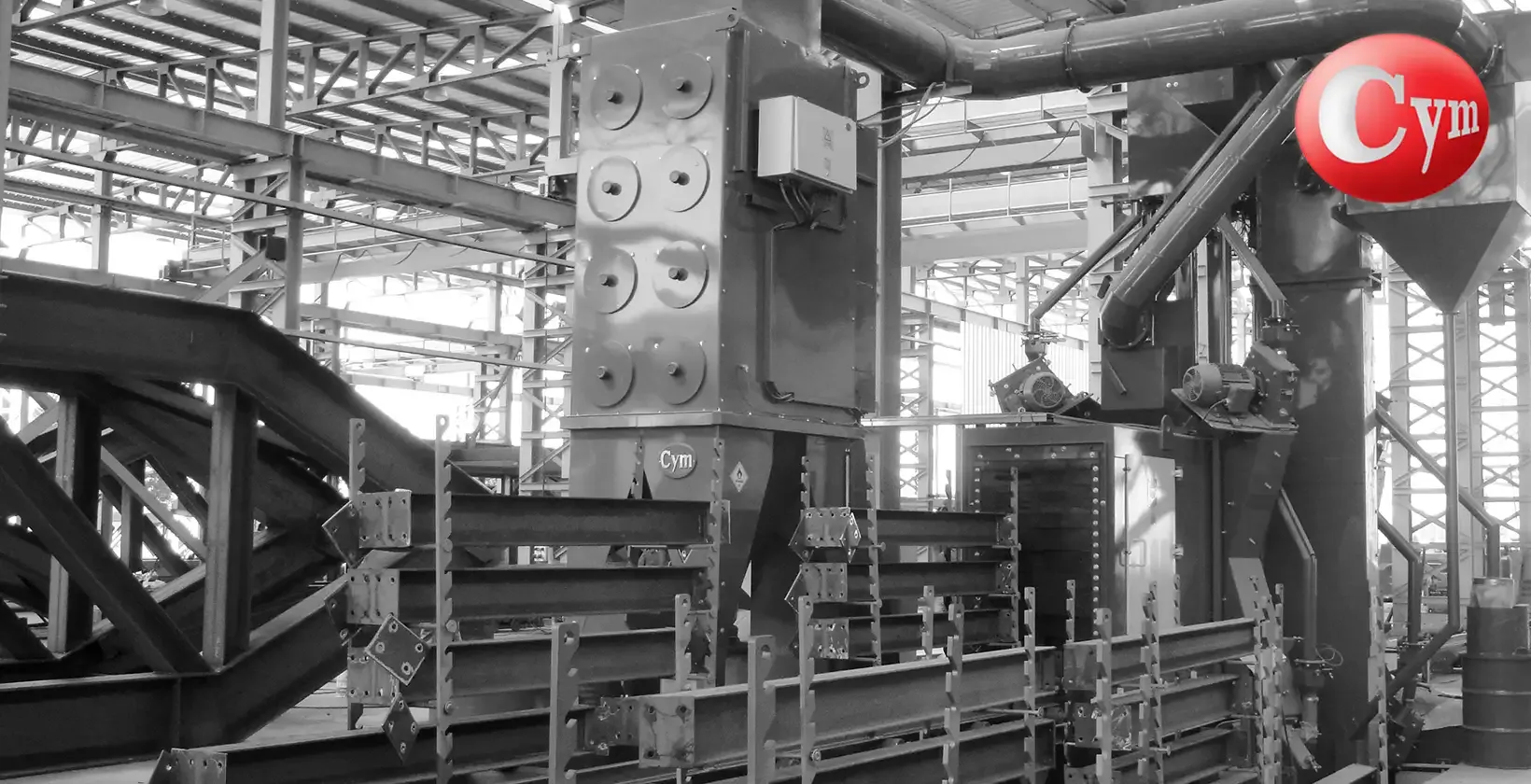

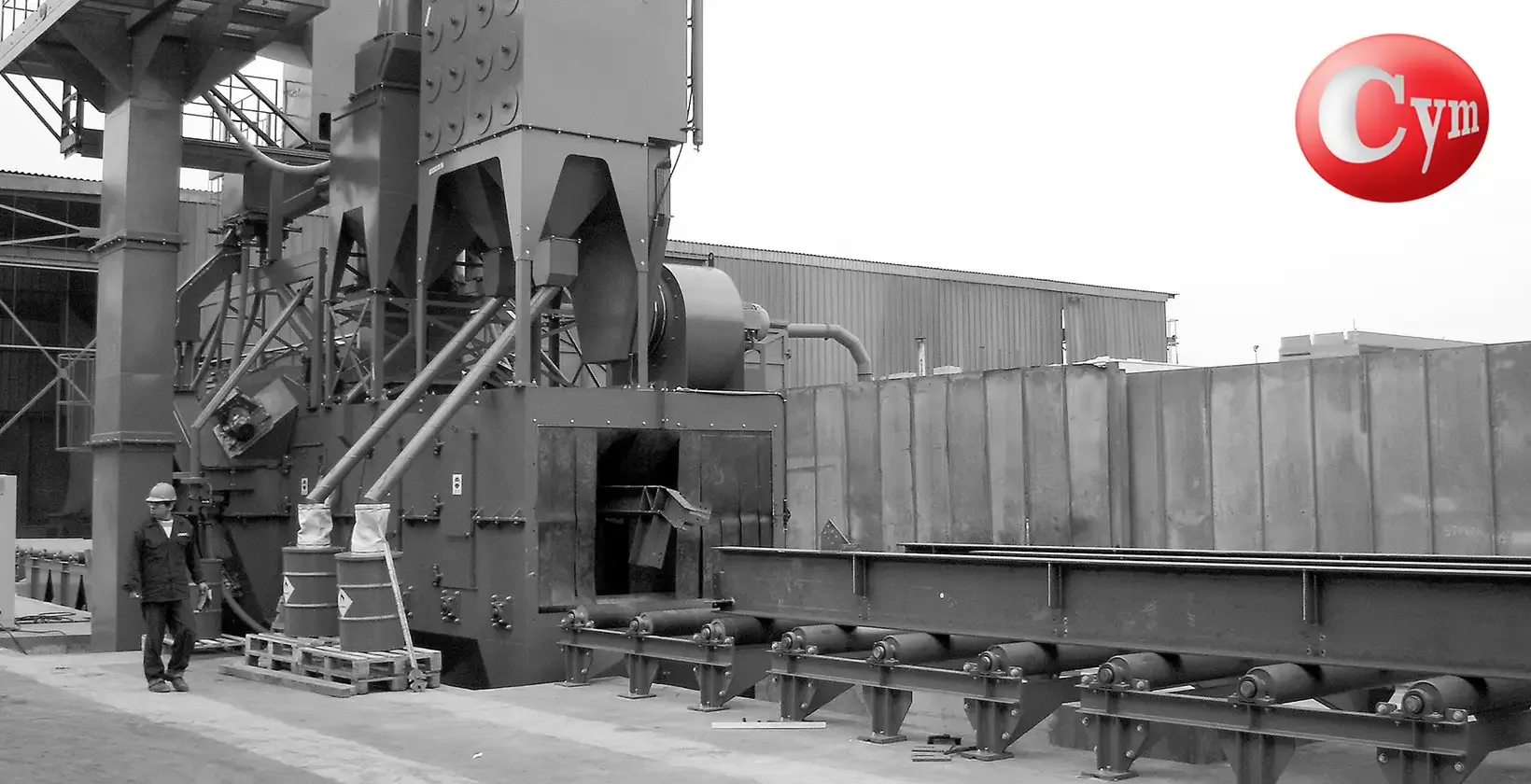

Continuous-pass automatic shot blast machine designed for surface preparation of raw material, heavy profiles, welded structures and fabricated assemblies with complex geometry. Parts travel on a roller conveyor through the blast chamber, equipped with 8, 12 or 16 centrifugal blast wheels —depending on model and part size— arranged at variable angles for complete coverage with no shadow zones.
- Suitable for raw material pre-blasting and surface preparation of welded structures prior to coating or painting.

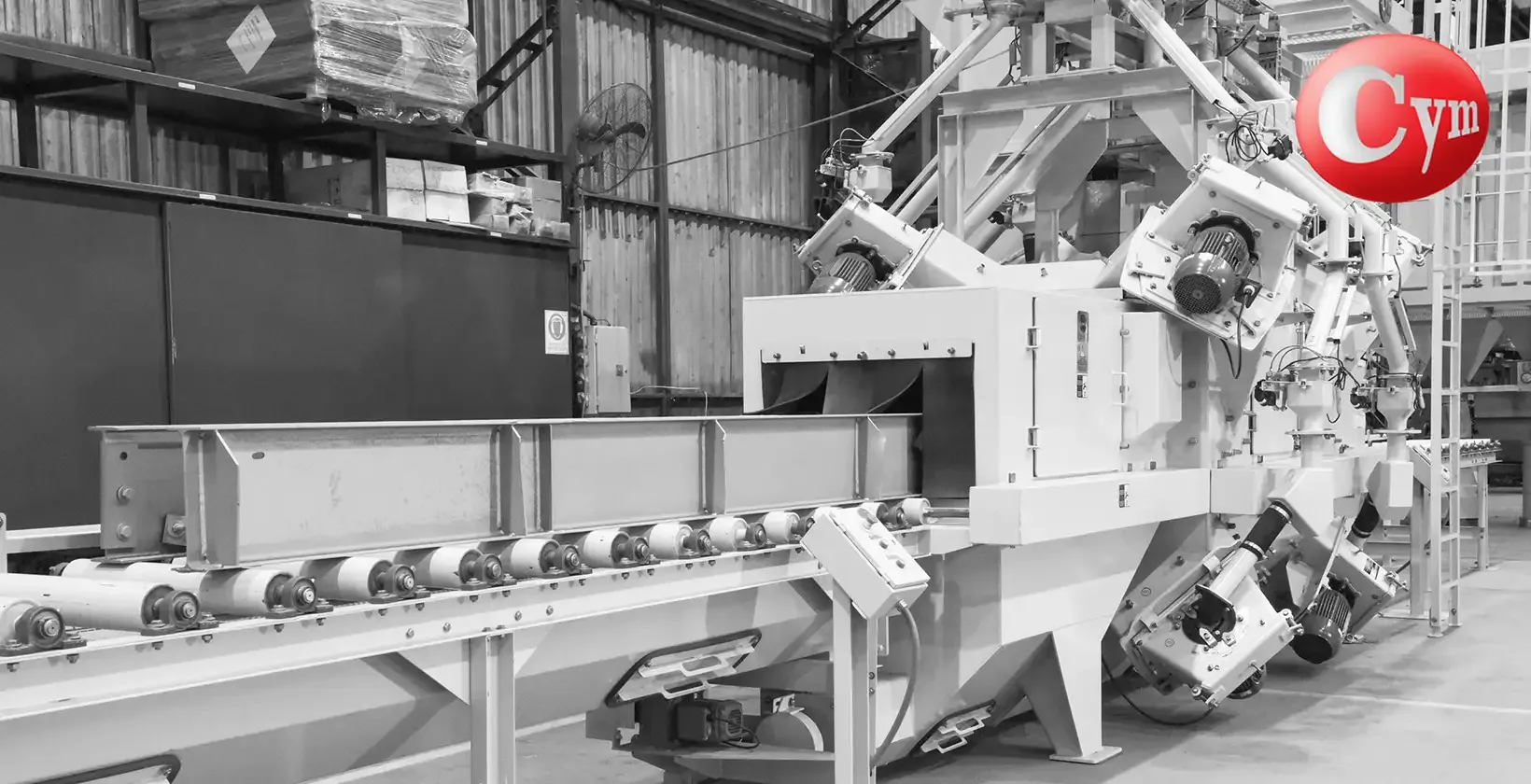

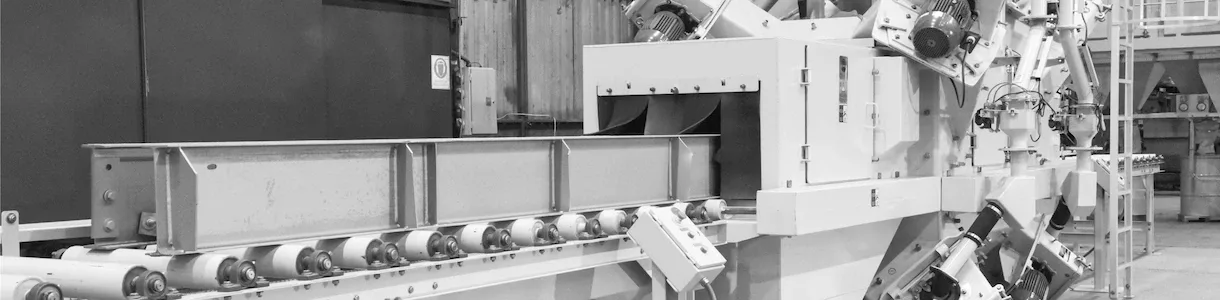

- Roller conveyor system for parts resting directly on rollers or mounted on support fixtures.

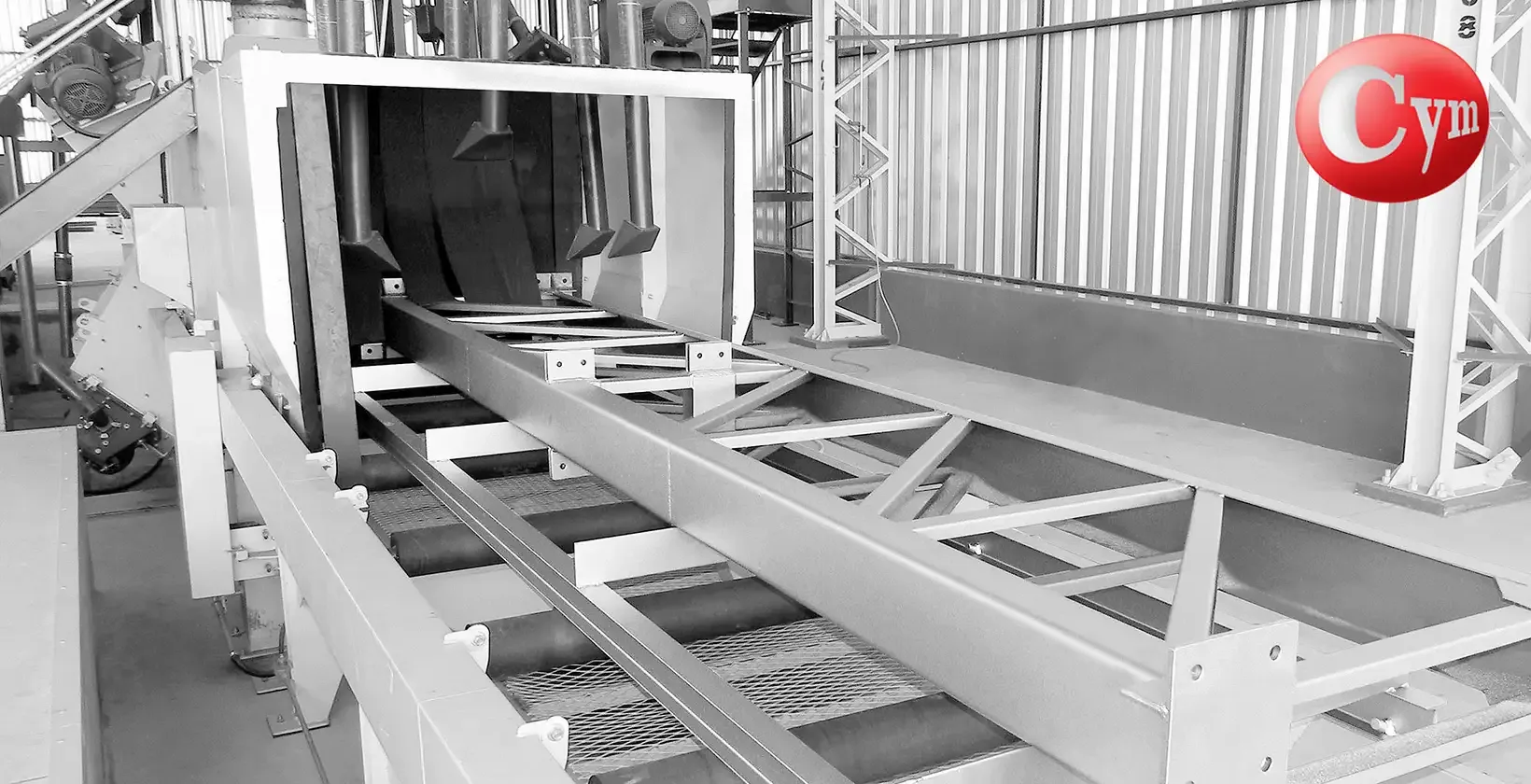

- Complete coverage with no shadow zones thanks to blast wheels arranged at variable angles.
- Adjustable conveyor speed and scalable power output to match production requirements.
- Integrable with structural fabrication lines and automatic painting systems.
.webp%3Fv%3D1778774364306&w=3840&q=75&dpl=dpl_8Hygxf3G2ZDntZYc4DhGQM285Emk)
TECHNICAL SPECIFICATIONS
Models and capacities
| Model | Effective section | Maximum passage | Turbines | HP | Speed m/min | ||
|---|---|---|---|---|---|---|---|
| Width | Height | Width | Height | ||||
| EST-ROD 08X17 | 600mm 24" | 1500mm 60" | 800mm 31" | 1700mm 67" | 6 | 10-30 | 0.3-6 |
| EST-ROD 16X08 | 1500mm 60" | 600mm 24" | 1600mm 62" | 800mm 31" | 8 | 10-30 | 0.3-6 |
| EST-ROD 16X17 | 1500mm 60" | 1500mm 60" | 1600mm 62" | 1700mm 67" | 8 | 10-30 | 0.3-6 |
| EST-ROD 16X21 | 1500mm 60" | 2000mm 78" | 1600mm 62" | 2100mm 82" | 12 | 10-30 | 0.3-6 |
| EST-ROD 25X17 | 2500mm 100" | 1500mm 60" | 2600mm 102" | 1700mm 67" | 12-16 | 10-30 | 0.3-6 |
| EST-ROD 35X17 | 3500mm 140" | 1500mm 60" | 3500mm 140" | 1700mm 67" | 12-16 | 10-30 | 0.3-6 |
Notes: The maximum part passage dimensions and production speed can be adapted to the customer’s specific requirements. Equipment output varies according to the installed turbine power, the amount of mill scale, paint and oxides, and the required shot blasting finish grade.
Installations
Equipment in operation
Videos
Equipment in action
Special Projects
Can't find the equipment you need?
CYM Materiales develops it.
Our Engineering and Sales team works alongside the client to design a custom solution, reducing operating costs and maximizing productivity. Every project starts with a detailed technical assessment and ends with a machine built and tested at our plant
REQUEST A CUSTOM PROJECT
